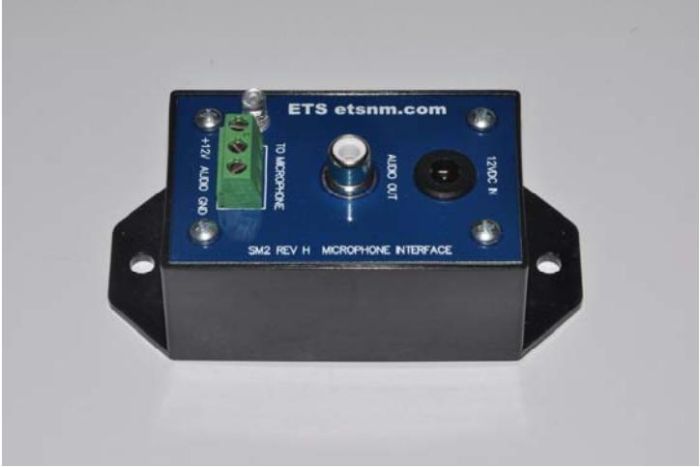

ETS SM2-CPI IP Camera Microphone Interface for Cameras with a 12VDC Outputs

The SM2-CPI from ETS powers an SM1 series microphone and routes its audio output to an RCA jack (or 3.5mm) for connection to equipment with a un-balanced line level input. Ideal for DRVs, remote monitoring applications, and CCTV monitors with built-in speakers.

ETS SM2-CPI Camera Features

Features

• Standard Connection: Standard RCA or 3.5mm jack for connection to DVRs, ensuring compatibility with a wide range of devices.
• Audio Output: Line level (0db) output level for optimal audio quality, allowing clear sound reproduction.
• Efficient Cabling: Euro-style connector makes cable termination fast and clean, reducing setup time and complexity.
• Power Indicator: LED power indicator for easy power status monitoring, providing peace of mind and operational awareness.
• Low Power Consumption: Power: 12 VDC @ 10mA, making it energy-efficient without compromising performance.
• Protection Features: Reverse polarity protection to prevent damage from incorrect connections, enhancing user safety.
• Fuse Protection: All power circuitry and cable run are protected with an auto-reset type fuse, ensuring reliable operation.
• Durable Housing: Black plastic ABS housing designed for longevity and resilience in various environments.

ETS SM2-CPI Detailed Specifications
