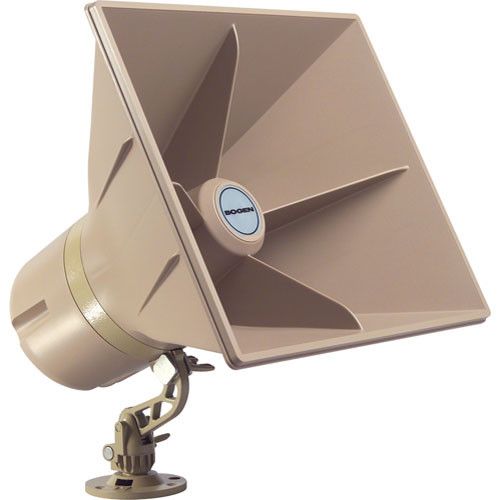

Bogen SAH5 5W High-Efficiency Digital Switching Self-Amplified Horn

SKU
SAH5
Model No
SAH5
$106.69
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 5-watt model with built-in amplifiers
  • Operate from 24V DC power source
  • 3 ways to position speaker (rotate, tilt, and swivel)
  • Weatherproof, UV-protected plastic housing
  • Simple and secure cast aluminum swivel mount

The SAH5 from Bogen is a High-Efficiency Digital Switching Self-Amplified Horn (5W) which uses less current and has lower heat dissipation than traditional analog self-amplified horns. This sturdy speaker can be positioned easily with its swivel and tilt mount. The uniquely shaped horn helps control dispersion for better intelligibility indoors or outdoors. Because of its high-efficiency digital switching amplifier, the SAH5 can operate for extended periods of time in higher ambient temperatures than conventional analog self-amplified horn speakers.

Features

  • 5-watt model: Built-in amplifiers deliver clear sound without needing additional amplifiers.
  • 24V DC operation: Efficient power usage enhances versatility and compatibility with various systems.
  • Digital switching technology: Provides low DC current draw and heat dissipation compared to traditional analog amplifiers, ensuring longer operation without overheating.
  • Low heat dissipation: Allows for continuous background music operation even in higher ambient temperatures, suitable for various environments.
  • Extended frequency response: 1.6" diameter voice coil and 90mm, 12-ounce magnet structure deliver superior sound quality.
  • Predictable dispersion pattern: Ensures excellent intelligibility and simplifies placement in any setting.
  • Versatile positioning: Offers 3 ways to position the speaker (rotate, tilt, and swivel) for optimal sound direction.
  • Weatherproof housing: UV-protected plastic ensures durability and longevity in outdoor conditions.
  • Secure mount: Simple and secure cast aluminum swivel mount provides reliable installation.
  • Easy wire connections: Features screw terminal strip for straightforward installation.
  • Indexed volume control: User-friendly knob allows for precise volume adjustments.
  • Removable access cover: Provides easy access for maintenance or adjustments.
  • Base slot for mounting: Includes a slot for strapping, enabling secure attachment to electrical boxes (mounting strap included).
  • I-beam mounting compatibility: Can be mounted to an I-beam flange using Bogen's BC1 beam clamp (not included), adding flexibility for installation.

Bogen SAH5 Detailed Specifications

ModelSAH5
Power Rating5W
Power Source24V DC
Amplifier TypeDigital Switching
Voice Coil Diameter1.6"
Magnet Structure90mm, 12-ounce
Dispersion PatternPredictable across full frequency range
Mounting OptionsRotatable, tiltable, and swivelable
MaterialWeatherproof UV-protected plastic
Mounting HardwareCast aluminum swivel mount, screw terminal strip
Volume ControlIndexed knob
Access CoverEasily removable
Included AccessoriesMounting strap
Additional FeaturesI-beam flange mounting compatibility
SKU  SAH5
Manufacturer  Bogen
Weatherproof  Yes
Connection Type  2 Conductor Speaker Wire
