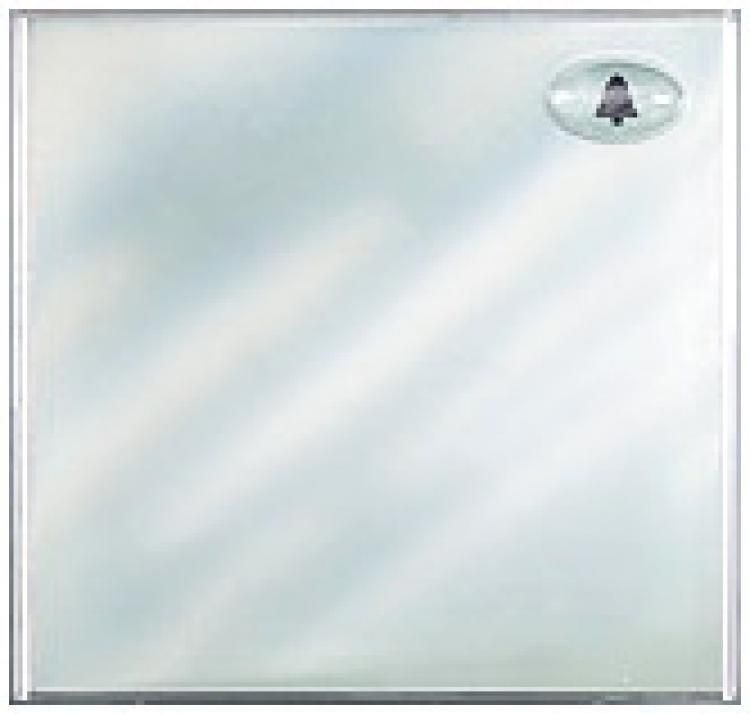

Alpha RTM1B 1 Pushbutton 2-Wire QWIKBUS Module

With Built-In L.E.D. Prism Illumination. L.E.D. Operates On 8-12V / 40 MA.

The RTM1B from Alpha is a push button module designed to be used with the modular series door entry stations. There are four (4) configurations available from one (1) to four (4) push buttons per module. It features LED illumination and a plug-in connector for easy wiring and maintenance. It is 3.94"w x 3.94"h (100mm x 100mm) and is made to snap into the MT series modular panel trim frame(s). To service this module, once installed, use the model 13510 key / tool unit.

Alpha RTM1B Pushbutton Module Features

• Configuration Options: Available in one to four push buttons to fit various entry needs.
• Easy Installation: Plug-in connector simplifies wiring and enhances maintenance.
• LED Illumination: Built-in L.E.D. provides visual clarity and enhances usability in low-light conditions.
• Compact Design: Dimensions of 3.94"w x 3.94"h (100mm x 100mm) ensure flexibility in installation.
• Tool-Free Servicing: Use model 13510 key/tool unit for easy access and maintenance without removing the module.

Alpha RTM1B Detailed Specifications
