Alpha RM5000CX/4 Central Exchange Unit- 4 Capacity

Model No
Product Highlights
    • Non-returnable or refundable

The RM5000CX/4 from Alpha is a Central Exchange Unit- 4 Capacity, Contains 3 Links/1 Program Channel, requires 2- BAT12-30 Batteries For Battery Back-Up Option. Microprocessor Intercom System The RM5000CX/4 is a fully electronic, microprocessor controlled system, which fully satisfies the requirements for a modern and effective internal communication system. The RM5000CX/4 system is modular in concept and the central exchange can be expanded up to a maximum of 6 total stations (masters and/or remotes).

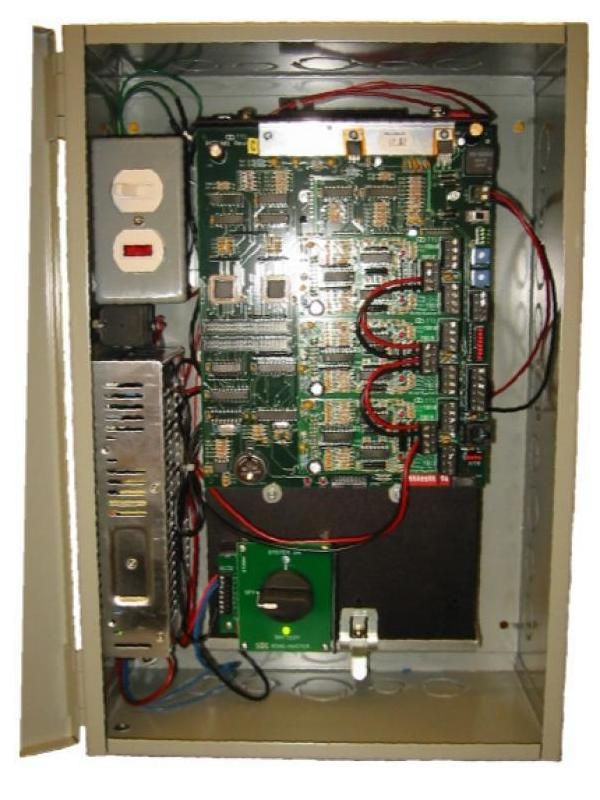

The central exchange has 3 conversation paths (links), permitting up to three (3) simultaneous conversations as well as program distribution channel, all-call and 7 group calls. The RM5000CX/4 consists of a metal enclosure with battery charger, sealed batteries, battery switch, processor card and one or more subscriber cards. A variety of master and remote stations is available to meet virtually any system need.


  • Clear two-way communications
  • Hands-free/loudspeaking
  • Confidential/Softspeaking capabilities
  • Manual Simplex operation at master stations
  • Microphone Cut-Off
  • 2,3 or 4 digit number calling
  • All-Call (standard) and 7 group calls
  • Simplex always option
  • Microphone Mute
  • Simple home-run wiring - simple to install
SKU  RM5000CX-4
Manufacturer  Alpha
Intercom Type  Audio Intercom
Connection Method  Multi-Wire Digital Systems
Weatherproof    Outdoor
Material  Metal
