Alpha RCC2510CS 2100 Series Refuge Command Center, 10 Unit Capacity, Surface-Mounted

Alpha RCC2510CS 2100 Series Refuge Command Center Features

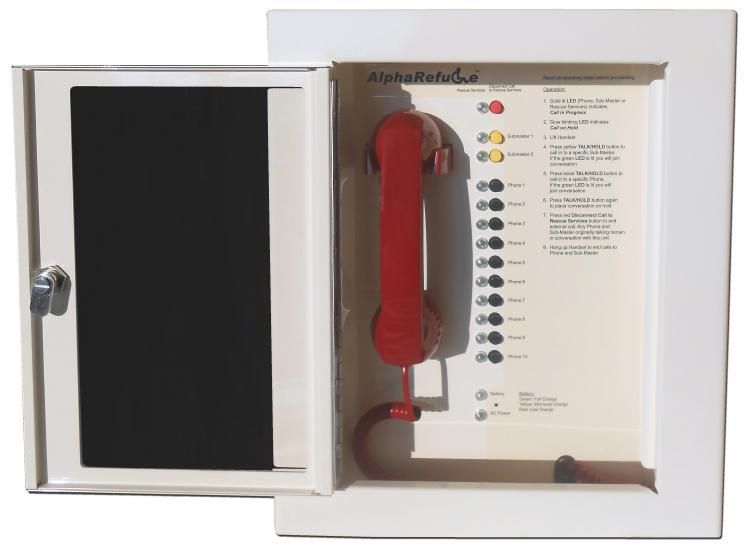

The RCC2510CS from Alpha is a refuge Call Center is used with the Refuge 2100 Series Area of Refuge system, Surface Mount type built into a lockable painted cabinet. It is used with the RCB2100 Series Refuge Call Boxes. The Refuge Call Center powered by connecting to 120VAC power, with the supplied power supply that provides 24VDC power. The Refuge Call Center come standard with a built-in back-up battery and charging circuitry. Only one (1) PWR2410A power supply is needed per system, when using Refuge Call Box that are "remote powered" (suffix-'R').

Features

• Heavy-Duty Steel Enclosure: Ensures durability with a powder-coated finish and a matching metal back box with twist lock closure, compatible with Fireman's Lock.
• Emergency Control Coordination: Allows for effective coordination and control during in-building rescue situations.
• Audible Alerts: Provides immediate notification when a call is placed to the Refuge Call Center, enhancing response times.
• LED Indicators: Clearly shows which Refuge Call Box(es) initiated the call, reducing confusion for emergency personnel.
• Telephone Line Consolidator: Built-in feature to manage multiple communication lines efficiently.
• High-Quality Components: Features heavy-duty button switches and a red handset with coiled cord for reliable communication.
• Two-Way Communication: Allows rescue personnel to communicate directly through the handset with both the Refuge Call Box(es) and any existing emergency calls.
• Expansion Capability: Includes connections for two (2) Sub-Master Stations, supporting larger facilities.
• Flexible Installation: Can be wall-mounted in a central location on the first floor or in any approved area per local AHJ regulations.
• Code Compliance: Meets IBC, NFPA, ADAAG, and Elevator Code requirements for safety and accessibility.
• Battery Backup: Equipped with built-in battery backup and charging circuitry, ensuring functionality during power outages.

Alpha RCC2510CS 2100 Series Refuge Command Center Specifications
