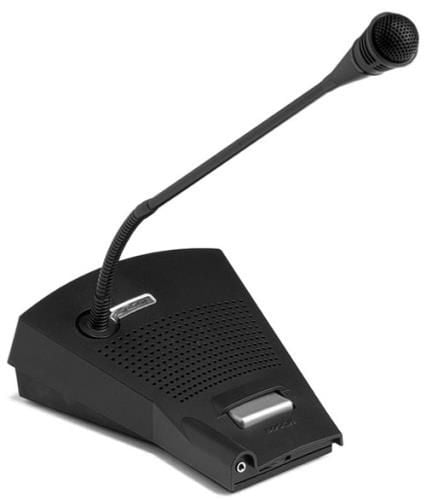

Bosch PRS-CSR Remote Call Station

Bosch PRS-CSR Remote Call Station Features

The PRS?CSR is a call station with the same functionality as the basic call station, LBB 4430/00, but it uses CAT-5 cable for its connection to the Praesideo network. It connects, one-to-one, to the call station interface, PRS?CSI, which is part of the Praesideo optical network. The CAT-5 cable, carrying digital audio and control data, can be as long as 1 km. The length of the CAT-5 cable is not a part of the Praesideo optical network length. This considerably increases the overall possible length of the optical network. The PRS-CSR can be extended with up to 16 keypads (LBB 4432/00 or LBB 4434/00), each with eight programmable keys. Extension with a numeric keypad (PRS?CSNKP) is also possible.

Features

• Connects via CAT-5 cable: Provides easy and flexible installation options, minimizing installation complexity and cost.
• Extended reach: Up to 1 km from the Praesideo optical network, allowing for greater coverage of large areas.
• Standard keypads for extension: Compatibility with standard Praesideo keypads (LBB 4432/00 or LBB 4434/00) increases customization options according to user needs.
• Built-in limiter: Ensures audio performance is maintained while preventing distortion, enhancing user experience.
• Multiple power options: Can be powered via CAT-5 and/or a local power supply, offering flexibility in different installation scenarios.

Bosch PRS-CSR Remote Call Station Detailed Specifications
