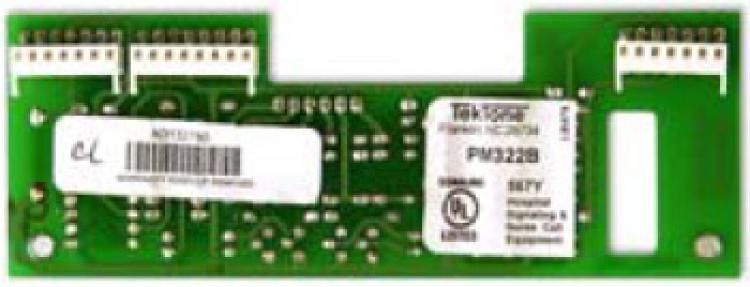

Alpha PM322B 1/2-Lamp Control Module for IR320B

Alpha PM322B - Key Features

The PM322B multiplex lamp control module is for use with NC300II series nurse call system patient station IR319B, and the SF401DIG pillow speaker. The module provides ON/OFF control of two lamp sources through the pillow speaker. Lamp source is typically the overhead room lamp and a separate reading lamp. Circuitry for low-voltage switching of the lamps is to be provided by others. Turning the lamps on or off is accomplished by pressing the appropriate switches on the corresponding pillow speakers. The lamp control module can also be directly mounted to stations equipped with PM312C pillow speaker intercom module.

Features

• Control: Provides ON/OFF control of up to two lamp sources for convenience and ease of use.
• Technology: Solid state multiplex circuits offer reliable operation and increased longevity.
• Installation: Simplified multiplex wiring using plug-in type connectors saves time and minimizes installation complexity.
• Functionality: Lamp control, TV control, and nurse calling from the SF401DIG Pillow Speaker enhance user experience.
• Compatibility: Supports standard SF41P series Pillow Speaker and SF401A Call Cords, ensuring versatility within the system.
• Mounting: Easily mounts directly to Patient Stations for flexibility in installation.

Alpha PM322B - Detailed Specifications
