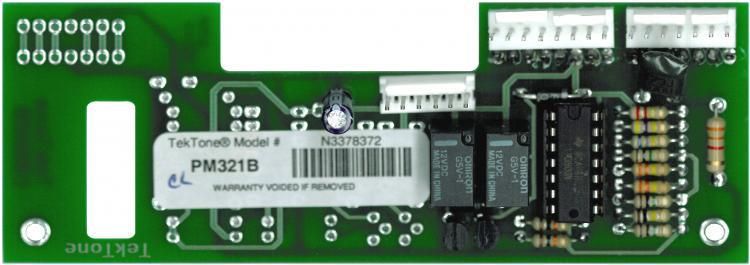

Alpha PM321B 1/2-Lamp Control Module for IR319B

Alpha PM321B Lamp Control Module Features

The PM321B multiplex lamp control module is for use with NC300II series nurse call system patient station IR319B, and the SF401DIG pillow speaker. The module provide for ON/OFF control of two lamp sources through the pillow speaker. Lamp source is typically the overhead room lamp and a separate reading lamp. Circuitry for low-voltage switching of the lamps is to be provided by others. Turning the lamps on or off is accomplished by pressing the appropriate switches on the corresponding pillow speakers. The lamp control module can also be directly mounted to stations equipped with PM311C pillow speaker intercom module.

Features

• Provides ON/OFF control: Allows users to control up to two lamp sources, enhancing convenience and accessibility within patient stations.
• Solid state multiplex circuits: Ensures reliable and efficient operation, reducing maintenance needs.
• Simplified wiring: Utilizes plug-in type connectors for easy installation and reduced setup time.
• Comprehensive control: Integrates lamp control, TV control, and nurse calling from the SF401DIG Pillow Speaker, streamlining user interaction.
• Compatibility: Supports standard SF41P series Pillow Speakers and SF401A Call Cords for versatile application.
• Direct mounting: Enables straightforward attachment to Patient Stations, facilitating easy integration into existing systems.
