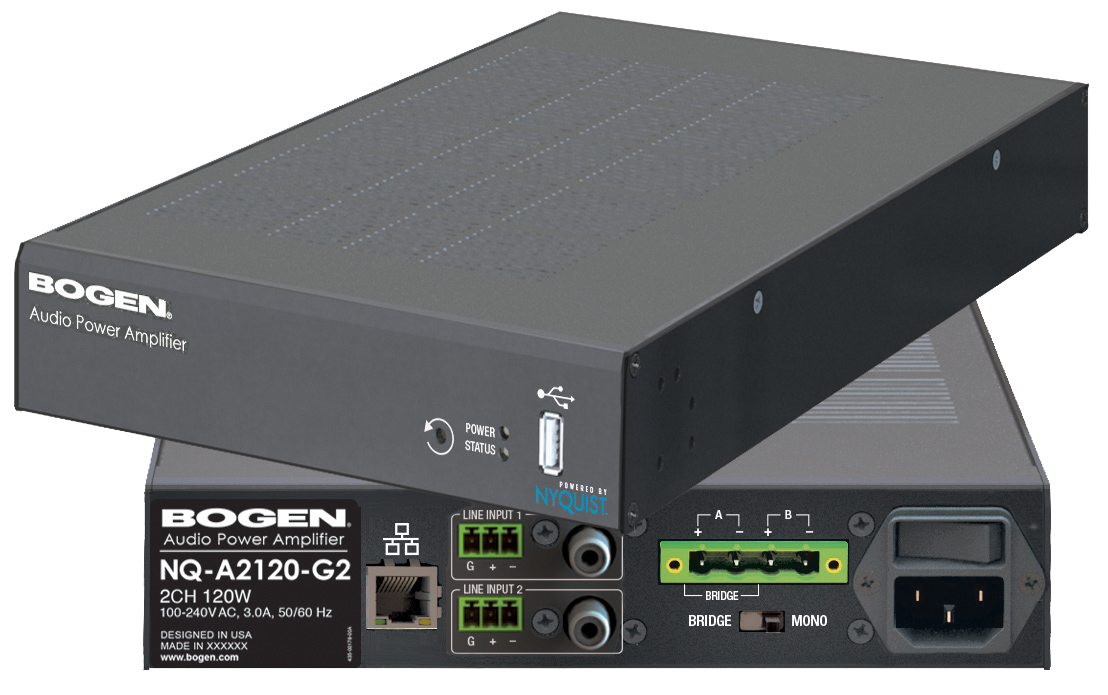

Bogen NQ-A2120-G2 Gen-2 Nyquist 2-Channel Audio Power Amplifiers
SKU
NQ-A2120-G2
Model No
NQ-A2120-G2
$1,030.51
Product Highlights
- 2 dedicated Balanced Line Inputs (both Phoenix plug & RCA)
- Line Inputs can be routed-out over the Nyquist network
- Network-based audio input (paging, audio distribution)
- 4-ohm, 8-ohm, 25V, and 70V outputs
- GUI based DSP control
- 16-band Graphic Equalizer
Speak to an expert
Bogen’s Nyquist NQ-A2120-G2 Gen-2 2-Channel Audio Power Amplifiers deliver exceptional performance for commercial sound systems with advanced DSP capabilities. Designed for contractors, these amplifiers feature flexibility in installation and operation, embodying state-of-the-art technology for a complete audio solution. Their Class D design ensures low heat output and high reliability, making them ideal for both large and small applications while being certified for residential use as well.
Bogen NQ-A2120-G2 Amplifier Features
- Balanced Line Inputs: Equipped with 2 dedicated balanced line inputs, allowing seamless connectivity through Phoenix plug and RCA options.
- Network Audio Input: Network-based audio input to support paging and audio distribution across multiple locations.
- Versatile Outputs: Capable of handling 4-ohm, 8-ohm, 25V, and 70V outputs, providing flexibility for various speaker systems.
- Built-in DSP Control: GUI based DSP control offers extensive processing like factory loudspeaker presets, enhancing audio quality for any setup.
- 16-band Graphic Equalizer: Allows precise tuning of audio to match environmental acoustics, improving overall sound clarity.
- Filters & Processors: Enhanced controls with adjustable high pass, low pass, and bandpass filters, plus noise gate and compressor/limiter functionalities for refined output.
- Parametric Equalizer: 7-band parametric equalizer for customized frequency adjustments and sound shaping capabilities.
- Operational Modes: Switch selectable between 2-channel (8-ohm/25V) or 1-channel bridged (4-ohm/70V) operation to suit diverse installation needs.
- Safety Certifications: Compliant with CAN/CSA, UL, and EN safety standards ensuring secure operation.
- EMC Compliance: Meets FCC and ICES EMC standards, ensuring minimal interference in operating environments.
- Compact Design: 1/2 rack width allows for wall, rack, or shelf mounting, adaptable to various space requirements.
- Optional Rack Kit: Compatible with a 19” rack mount kit (NQ-RMK03; sold separately) for professional installation.
Detailed Specifications for Bogen NQ-A2120-G2
| Feature | Details |
|---|---|
| Model | NQ-A2120-G2 |
| Channel Configuration | 2-Channel |
| Power Output | 120 Watts |
| Amplifier Type | Class D |
| Inputs | 2 x Balanced Line (Phoenix, RCA) |
| Outputs | 4-ohm, 8-ohm, 25V, 70V |
| DSP Software | Integrated GUI DSP Control |
| Size | 1/2 Rack Width |
| Mounting Options | Wall, Rack, Shelf (1RU and 2RU) |
| Safety Certification | CAN/CSA C22.2, UL62368-1, EN62368-1 |
| EMC Compliance | FCC Part 15b Class A, ICES-003, EN 55032, EN 55035 |
SKU  | NQ-A2120-G2 |
|---|---|
| Manufacturer | Bogen |
| Features CD Player | No |
| Features AM/FM Tuners | No |
| Features MP3 or iPod Dock | No |
| # of Inputs | 2 |
| # of Outputs | 2 |
