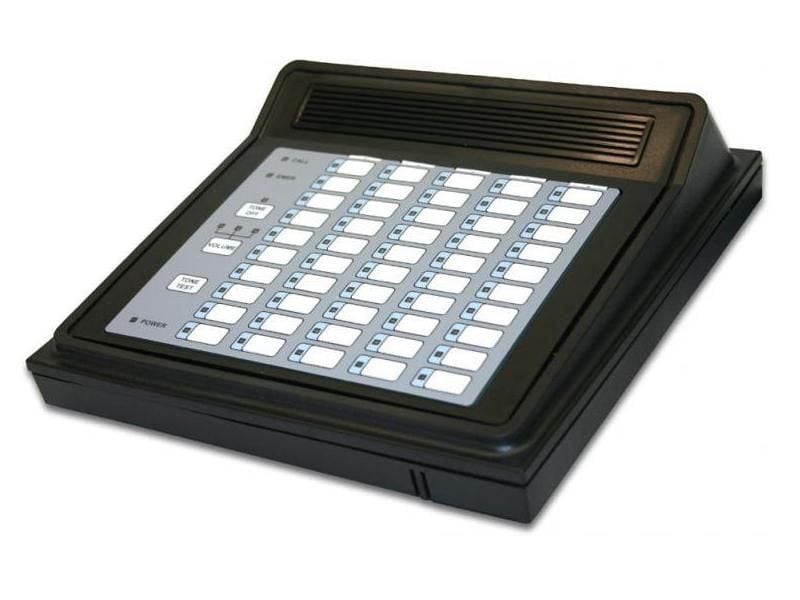

Alpha NC110A 50 Stations L.E.D. Desk Master

Model No
Product Highlights
    • Non-returnable or refundable

The NC110A from Alpha is a 50 Stations L.E.D. Desk Master, requires PK152 Power Supply and SS106 Transformer (Minimum) and may be Ih251N. The Alpha NC110A Audible Visual Nurse Call Annunciator/Control Master provides for audible and visual call indication without the use of intercom communications. A basic nurse-call system may consist of an NC110A annunciator/control master, room call stations, emergency call stations, dome lights, zone lights, control unit and power supply equipment. Emergency signals are identified at the annunciator/control panel by a rapid flashing of the associated station indicator LED, call LED and emergency LED; in addition to a rapid pulsating tone. Routine calls are indicated by the steady illumination of the station selector LED, call LED, and a slow pulsating tone. The tone may be canceled for normal calls by depressing the TONE ON/OFF button. EMERGENCY calls take precedence over ROUTINE calls.

Call signals can be canceled at point of origin only. Tone on/off and tone test functions are button selectable from the control panel, and three (3) levels of tone volume are button selectable with LED indication. Indicator LEDs signal the presence of EMERGENCY or ROUTINE calls. The NC110A has a maximum capacity of 50 selector points. Multiple NC110A masters may be used together for larger system capacities. All selector LEDs, indicator LEDs and control buttons are included on a membrane-type switch mounted on a telephone-sized plastic housing. An N/O open isolated relay contact output for ancillary off-board call handling is also included.


  • UL® 1069 Listed
  • Electronic tone circuit with volume control
  • Tone on/off and tone test functions
  • EMERGENCY and ROUTINE call signaling
  • Ideal for Hospital and Nursing Home Applications
  • 50-point capacity with labels for custom marking
  • Spill-resistant membrane switch
Manufacturer  Alpha
Intercom Type  Video/Audio Intercom
Connection Method  Multi-Wire Digital Systems
Weatherproof    Indoor
Material  Plastic
