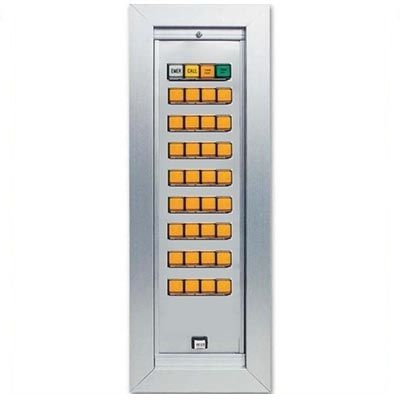

LEE DAN NC-110-32 32 Zone Nurse Call Annunciator / Control Panel

LEE DAN NC-110-32 32 Zone Nurse Call Annunciator / Control Panel

The NC-110-32 Audible-Visual Nurse Call System provides audible and visual call indication without the use of intercom communications. The basic system consists of a master annunciator/control panel, room call stations, emergency call stations, dome lights, zone lights, control unit, and power supply equipment. Emergency signals are identified at the master station by a rapid flashing of the associated station indicator light, call light, and emergency light; in addition to a rapid pulsating tone. Routine calls are indicated by the steady illumination of the station selector light, call light, and a slow pulsating tone. The tone may be canceled for normal calls by depressing the tone-off button. Emergency calls take precedence over Routine calls. Call signals can be canceled at point of origin only. Tone-Off and Tone-Test functions are push button selected from the control panel. Indicator lights signal the presence of Emergency or Routine calls.

Features

• UL 1069 Listed: Ensures compliance with industry safety standards for healthcare applications.
• Electronic DC buzzer: Provides clear and distinct audible alerts for effective communication of calls.
• Tone-Off and Tone-Test functions: Allows customizable sound management, enhancing user experience and minimizing disruptions.
• Emergency and Routine call signaling: Distinguishes between urgent and standard requests for prioritized response management.
• Modular design: Facilitates easy installation and future system upgrades or expansions.
• Protected markings: Ensures longevity and legibility of controls and indicators, suitable for high-traffic environments.

LEE DAN NC-110-32 Detailed Specifications
