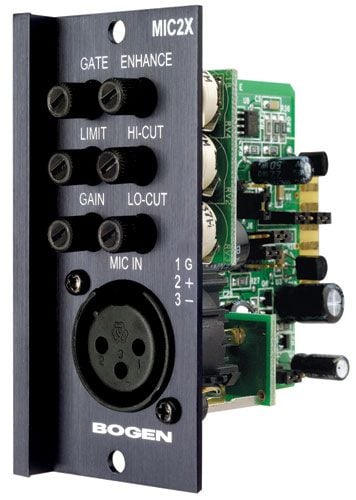

Bogen MIC2X Microphone Input Module

The Bogen MIC2X Microphone Input Module offers a sophisticated solution for audio interfacing, designed to accommodate a range of microphone types while providing advanced gain control, muting features, and sound optimization settings. With its electronically balanced input, XLR connector, and built-in phantom power supply, it serves as a reliable and versatile module for professional audio applications.

Bogen MIC2X Microphone Input Module Features

• Electronically Balanced Input: Provides exceptional noise rejection, ensuring clear audio reproduction for high-quality sound.
• XLR Connector: Standardized connector compatible with most professional microphones, simplifying setup and integration.
• 24V Phantom Power: Allows for the use of electret condenser microphones, enhancing versatility in microphone options.
• Gain Control: Adjustable gain range of 18 dB to 62 dB enables precise control over audio levels, accommodating various input sources.
• Noise Gate: Integrated noise gating with threshold control helps manage unwanted background noise, improving overall audio clarity.
• Built-in Limiter: Ensures maximum output levels are controlled, preventing distortion and protecting audio equipment.
• Bass and Treble Controls: Cut-only controls for low and high frequencies enhance audio quality by allowing selective frequency adjustments.
• Voice Enhancement Control: Improves speech intelligibility, making it ideal for announcements and presentations.
• Mute Functionality: Muting of lower priority modules and receiving mutes from higher priority modules facilitates seamless audio management.
• Bus Assignable Output: Flexibility to assign outputs to different mixing buses for versatile routing options in complex audio setups.

Detailed Bogen MIC2X Specifications
