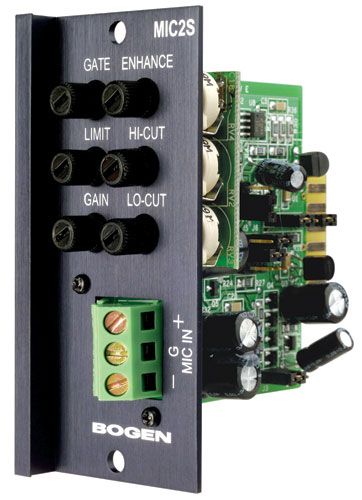

Bogen MIC2S Microphone Input Module
SKU
MIC2S
Model No
MIC2S
$72.53
Product Highlights
- Gain/Trim control
- High Cut/Low Cut controls
- Voice Enhancement control
- Noise gate w/Threshold control
- Limiter w/Threshold control
Speak to an expert
The Bogen MIC2S Microphone Input Module is designed to deliver exceptional audio performance with features tailored for professional applications. Its electronically-balanced input, phantom power capability, and advanced control options ensure compatibility with various microphones and enhance sound clarity. Ideal for both live sound and broadcasting, the MIC2S offers flexible functionality to meet diverse audio needs.
Bogen MIC2S Microphone Input Module Features
- Gain/Trim control: Adjust the gain from 18 dB to 62 dB for optimal audio level management.
- High Cut/Low Cut controls: Tailor the audio frequency response with bass and treble cut options for a cleaner sound.
- Voice Enhancement control: Improve voice intelligibility, making speech clear and distinct in any setting.
- Noise gate w/Threshold control: Effectively manage background noise and prevent audio bleed through.
- Limiter w/Threshold control: Protect against distortion by capping the maximum output level.
- 24V Phantom power: Support both dynamic and electret condenser microphones with reliable power supply.
- Mute send & receive: Facilitate streamlined audio control by muting lower priority modules when required.
- 4 Priority levels: Configure the module’s priority to manage audio inputs effectively in dynamic environments.
- Bus assignable: Easily assign the output to either or both mixing buses for versatile audio routing.
- Electronically balanced: Ensure high-quality audio signal transmission and minimize interference.
- Screw terminal: Provide secure and reliable connections for all input sources.
Bogen MIC2S Detailed Specifications
| Feature | Details |
|---|---|
| Input Type | Electronically-balanced with screw terminal connector |
| Microphone Compatibility | Low-impedance dynamic and electret condenser microphones |
| Phantom Power | Internal 24V DC phantom power supply with PCB jumper |
| Gain Range | 18 dB to 62 dB adjustable gain |
| Priority Levels | 4 assignable priority levels |
| VOX/Gating Circuit | Controls muting of lower priority modules |
| Limiter | Builtin limiter with threshold control |
| Bass/Treble Controls | Cut only: 10 dB at 100 Hz and 3 kHz |
| Voice Enhancement | Control to improve speech clarity |
| Output Buses | Assign to either or both mixing buses |
SKU  | MIC2S |
|---|---|
| Manufacturer | Bogen |
