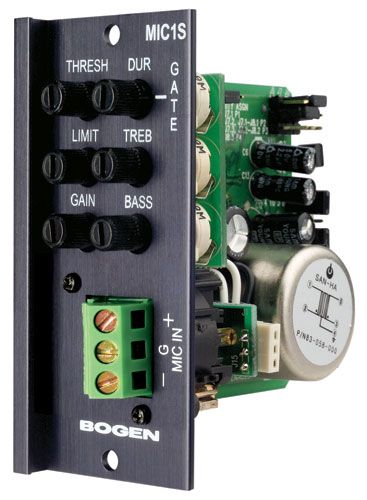

Bogen MIC1S Microphone Input Module

The Bogen MIC1S Microphone Input Module is an advanced audio interface designed for professional applications. It features a balanced, transformer-isolated input that supports low-impedance dynamic and electret condenser microphones. With adjustable gain, flexible muting options, and comprehensive sound controls including bass and treble, this module enhances audio quality and provides versatile functionality for audio mixing tasks.

Bogen MIC1S Microphone Input Module Features

• Gain Control: Adjusts gain from 28 dB to 62 dB, allowing for precise audio levels.
• Bass & Treble Controls: Cut or boost frequencies by 10 dB at 100 Hz and 10 kHz, enhancing sound tailoring capabilities.
• Noise Gate: Employs a threshold and duration control to prevent background noise and focus on desired audio sources.
• Limiter: Limits maximum output with a threshold control, ensuring audio clarity without distortion.
• Limiter Activity LED: Provides visual feedback on limiter status, aiding in monitoring audio performance.
• 24V Phantom Power: Supplies power to electret condenser microphones, ensuring compatibility and functionality.
• Mute Send & Receive: Allows the module to be muted by higher priority modules and can mute lower priority ones, ensuring control over audio sources.
• 4 Priority Levels: Assignable priority levels facilitate flexible audio management in various configurations.
• Bus Assignable: Output can be assigned to either or both of two mixing buses, offering connectivity versatility.
• Balanced, Transformer-Isolated Input: Provides high-quality audio signal isolation, improving overall performance.
• Screw Terminal Connector: Ensures secure wiring and easy connections for professional setups.

Bogen MIC1S Microphone Input Module Specifications
