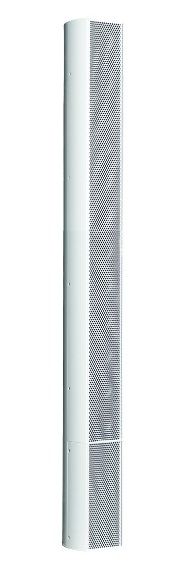

Bogen MESSENGER-M 12" DSP Steerable Line Array Active Speakers
SKU
MESSENGER-M
Model No
MESSENGER-M
$7,705.76
Product Highlights
- Designed to be environmentally friendly in build and application
- Equipped for Voice evacuation applications
- 24VDC input for battery backup, 20kHz input surveillance, internal HF carrier loudspeaker surveillance
- Temperature sensor with frost protection
- RS485 data bus for full detailed status report and PC based remote setup (up to 32 Messengers on the bus)
Speak to an expert
The Bogen MESSENGER-M 12" DSP Steerable Line Array Active Speakers offer a cutting-edge solution for high-quality audio applications. With their fully digital sidelobe-free design and patented algorithmic technology, these speakers ensure optimal speech intelligibility and background music performance, particularly in challenging acoustic environments. Their precise beam control and advanced DSP features tailor the sound experience to specific settings, making them ideal for diverse installations.
Bogen MESSENGER-M Speaker Features
- Fully digital sidelobe-free speaker array: Ensures optimal sound delivery without distracting side sound, enhancing clarity.
- Triple-lobe feature: Provides ultimate accuracy in lobe design, allowing for custom setups that meet specific environmental needs.
- Tightly controlled beam, up to 5 degrees: Can be shaped in nine steps, perfect for tailored audio experiences in various settings.
- A-symmetrical and symmetrical arrangement: Achieved through software control, enabling flexible configuration for different applications.
- Integrated DSP control: Offers 7 band parametric EQ, noise gate, peak limiter, and more for precise audio manipulation.
- Adaptable ACOUSTIC center: Freely adjustable to match lobe shape with the listening area, enhancing sound focus.
- Q factor of >72: Ensures effective sound control and desirable audio characteristics.
- Equal coverage and no side lobes: Delivers a precisely controlled listening field with high intelligibility.
- Environmentally friendly design: Both in build and application, reducing ecological impact.
- Voice evacuation equipped: Perfect for emergency situations, providing reliability in critical moments.
- 24VDC input: Enables battery backup, ensuring operation during power outages.
- Temperature sensor with frost protection: Enhances durability and performance in changing environments.
- RS485 data bus: Facilitates detailed status reporting and remote setups for multiple units.
- EASE DLL compatibility: Allows for advanced room acoustic simulations, optimizing sound design.
- SPL stability within +/- 2dB: Maintains consistent sound quality over a distance of at least 180ft.
Bogen MESSENGER-M Detailed Specifications
| Feature | Details |
| Model | MESSENGER-M |
| Speaker Type | Active Steerable Line Array |
| Size | 12 inches |
| Beam Control | Tightly controlled up to 5 degrees, adjustable in nine steps |
| DSP Features | 7 band parametric EQ, noise gate, delay, peak limiter, VOX-control |
| ACOUSTIC Center Adjustment | Freely adjustable to match the lobe shape |
| Q Factor | > 72 (10 V x 145 H) |
| Power Input | 24VDC for battery backup |
| Environmental Features | Temperature sensor with frost protection |
| Data Bus | RS485 for status reporting and setup |
| SPL Variation | Maintains within +/- 2dB over 180ft |
| Compatibility | EASE DLL for room acoustic simulations |
| Voice Evacuation | Yes, integrated for emergency applications |
SKU  | MESSENGER-M |
|---|---|
| Manufacturer | Bogen |
