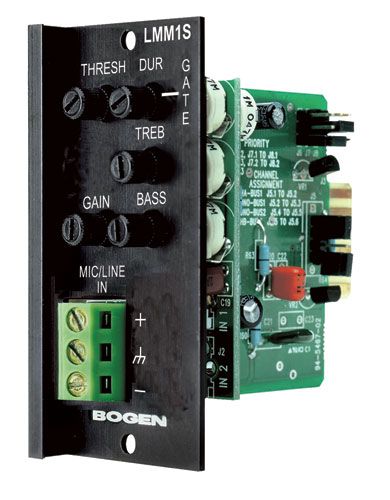

Bogen LMM1S LINE/MIC Input Module
SKU
LMM1S
Model No
LMM1S
$103.20
Product Highlights
- Bass & Treble controls
- Actively-balanced input
- LINE/MIC Attenuator switch
- Gating w/Threshold & Duration
- 24V Phantom power supply
Speak to an expert
The Bogen LMM1S LINE/MIC Input Module is designed for superior audio performance and flexibility, featuring adjustable gain control, sophisticated gating options, and integrated bass and treble adjustments. With its comprehensive priority management, 24VDC phantom power supply, and remote control capabilities, this module is perfect for enhancing your sound system while maintaining high-quality audio.
Bogen LMM1S Features
- Bass & Treble controls: Customize your audio output with cut/boost capabilities of 10 dB at 100 Hz and 10 kHz.
- Actively-balanced input: Ensures high sound quality and reduces noise interference.
- LINE/MIC Attenuator switch: Versatile input options allow for various audio sources to be connected effortlessly.
- Gating w/Threshold & Duration: Control background noise and manage sound levels effectively.
- 24V Phantom power supply: Supports condenser microphones for improved acoustic performance.
- 4 Priority levels: Prioritize audio inputs for enhanced control over your sound mixing.
- Bus assignable: Flexible output options for optimal integration with mixing systems.
- Built-in limiter w/ LED: Protects against sound peaks and signal distortion, ensuring clear audio.
- Remote control volume option: Conveniently adjust levels from a distance for ease of use.
- Single-gang remote control panel included: The package provides additional convenience with included controls.
- Remote distance up to 2,000 Ft: Allows for extensive range in controlling audio settings remotely.
- Screw terminal connectors: Reliable and easy connections for simplified installation.
Bogen LMM1S Detailed Specifications
| Input Type | LINE/MIC |
| Gain Control Range | 18 dB to 60 dB (MIC), -2 dB to 40 dB (LINE) |
| Phantom Power | 24VDC, enabled by PCB jumper |
| Gating Control | Threshold and duration adjustable |
| Bass Control | 10 dB cut/boost at 100 Hz |
| Treble Control | 10 dB cut/boost at 10 kHz |
| Output Assignability | Assignable to one or both mixing buses |
| Priority Levels | Four selectable levels |
| Limiter | Built-in with LED indicator |
| Remote Control Capability | Included single-gang panel; operates up to 2,000 Ft |
| Connection Type | Screw terminal connectors |
SKU  | LMM1S |
|---|---|
| Manufacturer | Bogen |
