Penton LIS8-IP-M 8" Lay-in Tile Speaker with IP Module Control Output, Push Button Input with Microphone
SKU
LIS8-IP-M
Model No
LIS8-IP-M
$925.65
Product Highlights
- Power over Ethernet (PoE+) and/or external 24VDC power
- Configured, controlled and monitored via web browser
- Optional microphone input for hands-free duplex intercom
- Full DSP includes AEC, NR, Ducker, AGC, PEQ, Hi/Low Pass, Compressor, Limiter etc
- 3rd party control with TERRACOM system

Speak to an expert

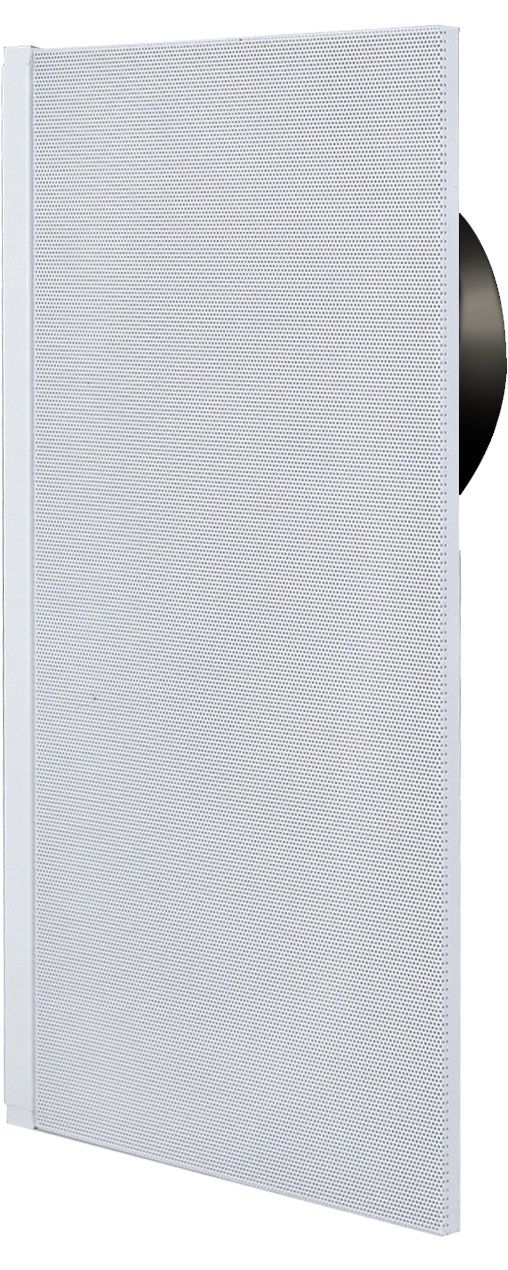

The Penton LIS8-IP-M 8" Lay-in Tile Speaker with IP Module Control Output is designed for superior audio performance in demanding environments. This 10-watt twin-cone loudspeaker is perfect for voice paging, intercom systems, and music streaming, designed to seamlessly integrate with modern communication systems while overcoming ambient noise in large spaces. With control options for audio routing and announcements, the speaker serves as a reliable SIP endpoint for network-wide communication.
Penton LIS8-IP-M Unique Features
- Power over Ethernet (PoE+): Simplifies installations by providing power and data over a single cable, reducing costs.
- Web Browser Control: Offers easy configuration and monitoring from any device with a web browser, enhancing user convenience.
- Optional Hands-Free Microphone Input: Enables duplex intercom functionality for clear two-way communication without physical contact.
- Full DSP Capabilities: Includes advanced features like AEC and noise reduction, ensuring optimal sound quality in any setting.
- Third-Party Control Compatibility: Works seamlessly with the TERRACOM system for integrated audio management.
- VoIP Support: Facilitates communication via SIP protocol, making it versatile for various applications.
- Network Audio Codec Support: Compatible with G.711, G.722, Wav, and MP3 formats, allowing for diverse audio sources.
- Multiple Control Inputs: Offers three control inputs for customizable audio level and source selection, plus one relay contact output for event triggering, enhancing user control.
- Integration with TerraManager: Part of the TERRACOM ecosystem, it easily integrates with TerraManager GUI control software for a comprehensive audio management solution.
Penton LIS8-IP-M Detailed Specifications
| Model | Penton LIS8-IP-M |
| Speaker Type | 8" Twin-Cone Lay-in Tile Speaker |
| Power Output | 10 Watts |
| Power Supply | Power over Ethernet (PoE+), External 24VDC |
| Control Inputs | 3 Control Inputs for Level Control, 1 Relay Contact Output |
| DSP Features | AEC, NR, Ducker, AGC, PEQ, Hi/Low Pass, Compressor, Limiter |
| Audio Protocol | SIP Protocol for VoIP Calls |
| Audio Format Support | G.711, G.722, Wav, MP3 |
| Integration | Compatible with TerraManager GUI Control Software |
