Louroe Electronics LE-348 PoE Extractor Interfaces with Speakerphones, Bi-Directional Microphone

SKU
LE-348
Model No
ASK-4® #371
$724.00
Qty:
Product Highlights
    • Single zone Power over Ethernet (PoE) extractor
    • Line level audio in & out (3.5mm jacks)
    • Omni-directional microphone, within 30′ diameter circle
    • 4″ Speaker
    • Can be placed up to 1000′ away from the base station

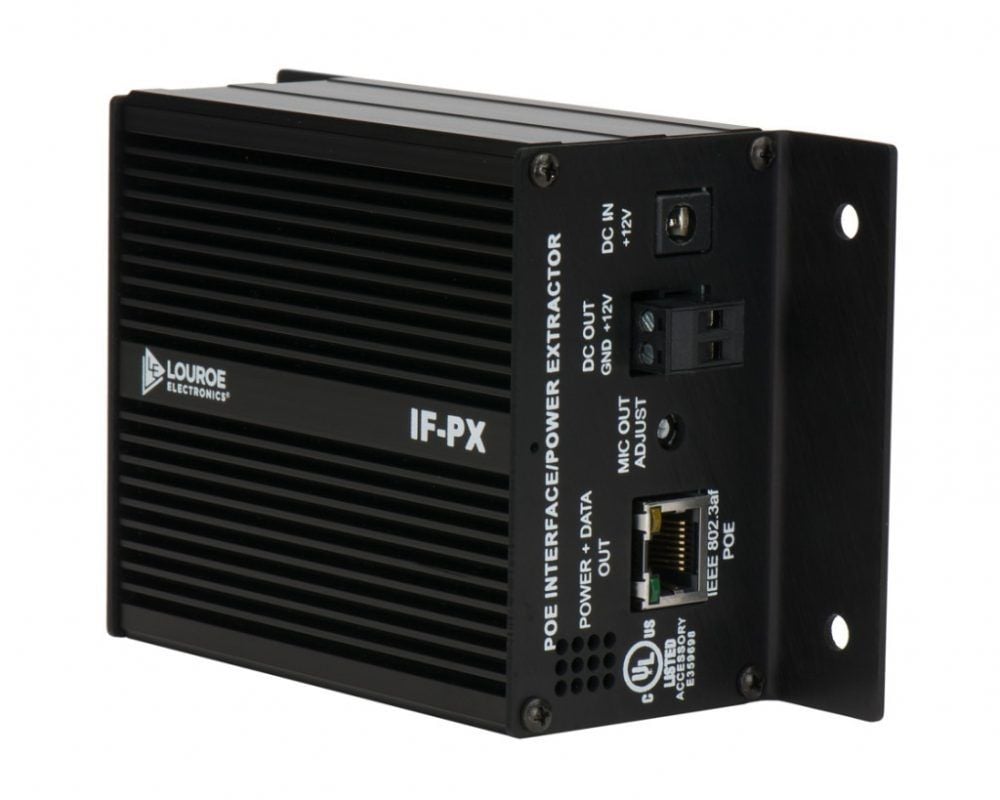

The LE-348 from Louroe Electronics is a PoE extractor interfaces with speakerphones, bi-directional microphone. The ASK-4® #371 is a two-way talk and listen single zone audio monitoring system. This system is designed to tap PoE power and provide two-way communication through the IP camera’s video management software. The IF-PX is an audio-oriented, single zone power over Ethernet extractor that extracts power from an Ethernet connection to power Louroe’s one-way or two-way audio solutions.

The PoE Extractor interfaces with Louroe speakerphones, microphones and other external devices that require a 12 Vdc supply such as system accessories and non PoE cameras. The IF-PX also permits audio and video equipment to be powered by a single run of CAT5, CAT5e or CAT6 cable. The IF-PX enhances the functionality of audio security systems by eliminating the need for a power supply. It also provides seamless installation with 15W PoE (802.3af) standards and easy integration with IP cameras. The AOP-550 is a ceiling mount self-amplified speaker/microphone designed to connect to a DVR or PC soundcard.

Features

IF-PX

  • Single zone Power over Ethernet (PoE) extractor
  • Line level audio in & out (3.5mm jacks)
  • Adjustable gain potentiometer
  • Low-profile for ease of installation
  • Durable, powder coated extruded aluminum housing

AOP-550

  • Omni-directional microphone, within 30′ diameter circle
  • 4″ Speaker
  • Full Duplex
  • Can be placed up to 1000′ away from the base station
SKU  LE-348
Manufacturer  Louroe Electronics
Connection Type  3 Conductor Speaker Wire
There are no related videos.
SKU
LE-348
Availability: In stock
