Louroe Electronics IF-2 Interface for Two Louroe Electronics Mi IF-2 by Louroe Electronics

Louroe Electronics IF-2 Interface for Two Louroe Electronics Mi

Louroe Electronics IF-2 Interface for Two Louroe Electronics Mi

  • Louroe Electronics IF-2 Interface for Two Louroe Electronics Mi Louroe Electronics IF-2 Interface for Two Louroe Electronics Mi

SKU: IF-2

Model #: LE-273

Availability: Usually ships the next business day

$142.78

Availability: In stock

Low Price Guarantee

Quick Overview



    • Compatible with all Louroe microphones

    • Contains terminal blocks for microphone connections

    • Supplies 12Vdc power to the microphones

    • Dual outputs (per microphone) to accommodate either on RCA input or 3.5mm input connection to DVR, IP Network Camera etc

    • Gain adjust (each output) to prevent overdriving or underdriving the audio signal

UPC: 785583002732

  • Express Checkout:
  • Checkout with PayPal

See any errors on this page? Let us know.

Product Details

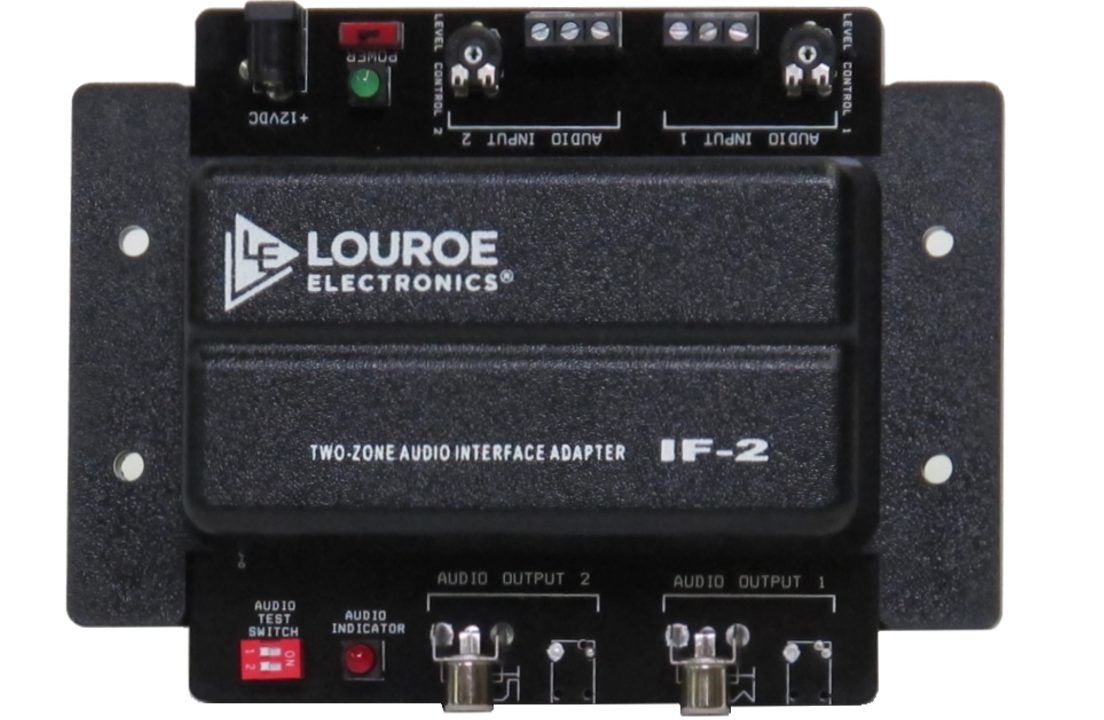

The LE-273 from Louroe Electronics is a two-zone audio interface adapter designed for connecting up to two Louroe microphones with a DVR, IP network camera or other recording devices that have multiple audio inputs. The input side of the LE-273 has terminal blocks for receiving the wiring from the microphones. The output side has two types of output. RCA type & 3.5mm type output. The LE-273 also contain individual "audio out control" potentiometers for audio gain adjustment. The output from the Louroe microphone can be amplified to 10dB. A 12Vdc power supply (included) provides power to the Louroe microphone.

Features

  • Compatible with all Louroe microphones
  • Contains terminal blocks for microphone connections
  • Supplies 12Vdc power to the microphones
  • Dual outputs (per microphone) to accommodate either an RCA input or 3.5mm input connection to DVR, IP Network Camera etc
  • Gain adjust (each output) to prevent overdriving or underdriving the audio signal
  • 12 Vdc power supply included
  • RCA connector cables (with stereo adapter) included
  • Audio test switch with indicator LED to assure presence of audio

Downloads

  LE-273-Specsheet

Product Specifications

SKU  IF-2
Manufacturer  Louroe Electronics
# of Areas  2
