Louroe Electronics LE-167 AP-8-RM 8 Zone Audio Monitoring Base Station
SKU
LE-167
Model No
AP-8-RM
was $949.95 Special Price $938.99
Product Highlights
- Rack mounted eight zone audio monitoring base station
- Push button for selected zone listening
- 3' speaker for monitoring live audio and playback from a DVR
- Line level audio output (RCA) to DVR
- 3.5 mm headphone jack for private listening

Speak to an expert
Louroe Electronics LE-167 AP-8-RM 8 Zone Audio Monitoring Base Station

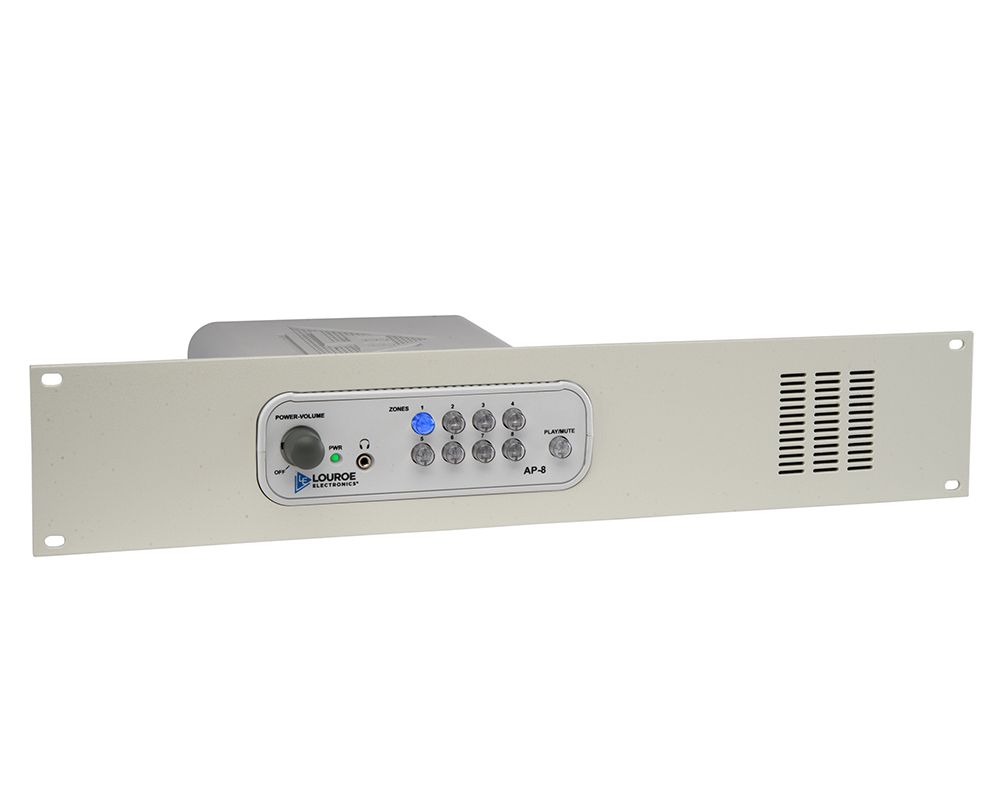

The LE-167 is an eight zone manual audio monitoring rack mounted base station. It contains eight audio inputs (terminal blocks) for connecting up to eight Louroe microphones for live monitoring and has eight audio outputs (RCA type) for connection to a DVR with multiple audio inputs. The AP-8 also contains a selectible audio output (RCA) for connection to a VCR or to a DVR with only one audio input. An audio input (one) is available for audio playback from the DVR or VCR. A built-in speaker provides live audio and playback audio.
Features
- Rack mounted design: Saves space and fits seamlessly into any audio monitoring setup.
- Push button for selected zone listening: Offers convenient access to monitor specific zones as needed.
- 3” speaker: Delivers clear monitoring of live audio and playback from a DVR for effective audio management.
- Line level audio output (RCA): Simplifies connection to DVR systems, ensuring reliable audio transmission.
- 3.5 mm headphone jack: Allows for private listening, enhancing user privacy during monitoring.
- Extended distance capability: Can be located up to 1000’ from the Louroe microphone, providing flexible installation options.
Detailed Specifications for Louroe Electronics LE-167 AP-8-RM
| Feature | Details |
|---|---|
| Model | LE-167 AP-8-RM |
| Input Channels | 8 audio inputs (terminal blocks) |
| Output Audio | 8 RCA audio outputs + 1 selectable output |
| Speaker | Built-in 3” speaker for live and playback audio |
| Headphone Jack | 3.5 mm for private listening |
| Distance Capability | Up to 1000’ from microphone |
