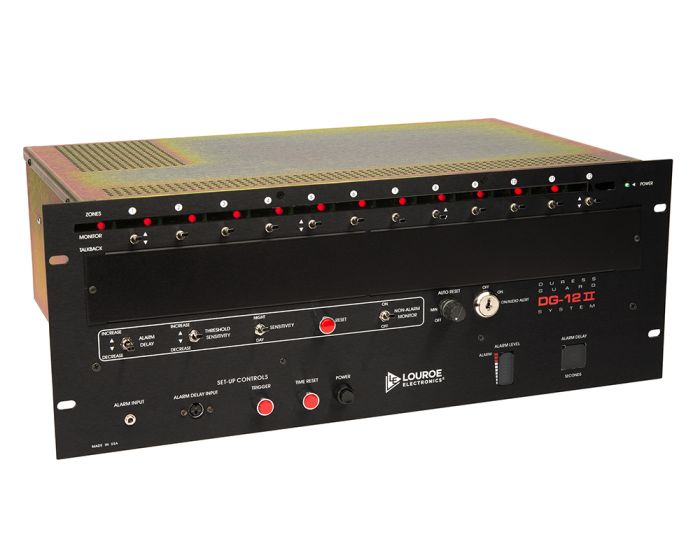

Louroe Electronics DG-12II 12 Zone Alarming DG-12II by Louroe Electronics

Louroe Electronics DG-12II 12 Zone Alarming

Louroe Electronics DG-12II 12 Zone Alarming

  • Louroe Electronics DG-12II 12 Zone Alarming Louroe Electronics DG-12II 12 Zone Alarming

SKU: DG-12II

Model #: LE-065

Availability: Usually ships the next business day

Low Price Guarantee

Quick Overview



    • 19” Rack mountable

    • Variable threshold level control based on frequency and sound pressure

    • Interfaces with Louroe Alarming Base Stations AP-4CS, AP-8CS or AP-12CS

    • Bi-color LED (each zone). GREEN when monitoring, RED when in alarm

    • Variable alarm delay control (from 0.1 to 3.2 seconds)

UPC: 785583000653

  • Express Checkout:
  • Checkout with PayPal

See any errors on this page? Let us know.

Product Details

The LE-065 from Louroe Electronics is a twelve zone alarming base stations designed to provide sound activated audio monitoring. As a system, it is interfaced with Louroe microphones or speaker/microphones mounted in remote locations. Each zone has a variable threshold level based on frequency and sound pressure and a variable alarm delay (from 0.1 to 3.2 seconds) that can be set by the installer or owner. When a sound or disturbance exceeds the pre-set threshold level and time duration, the unit goes into alarm. A lighted LED and three-second tone identify the zone, along with a relay contact for activating a camera or other annunciation. Requires companion DG-MA for two-way listen/talkback or DG-Monitor for one-way listen.

Features

  • 19â Rack-mountable
  • Variable threshold level control based on frequency and sound pressure
  • Interfaces with Louroe Alarming Base Stations AP-4CS, AP-8CS or AP-12CS
  • Bi-color LED (each zone). GREEN when monitoring, RED when in alarm
  • Variable alarm delay control (from 0.1 to 3.2 seconds)
  • NO/NC relay contacts for each zone for activating camera or other annunciations
  • Two threshold level settings - HIGH (night) and LOW (day)
  • DAY and NIGHT threshold sensitivity switch
  • Automatic or manual reset for alarm cancellation: auto reset variable from 3 sec to 3 min.
  • Built-in tester for alarm audio and time delay
  • Zone expansion (for up to six microphones or speaker/microphones per zone using Model MLA-6 Mixer)

Downloads

  LE-065-Specsheet

Product Specifications

SKU  DG-12II
Manufacturer  Louroe Electronics
# of Areas  12
