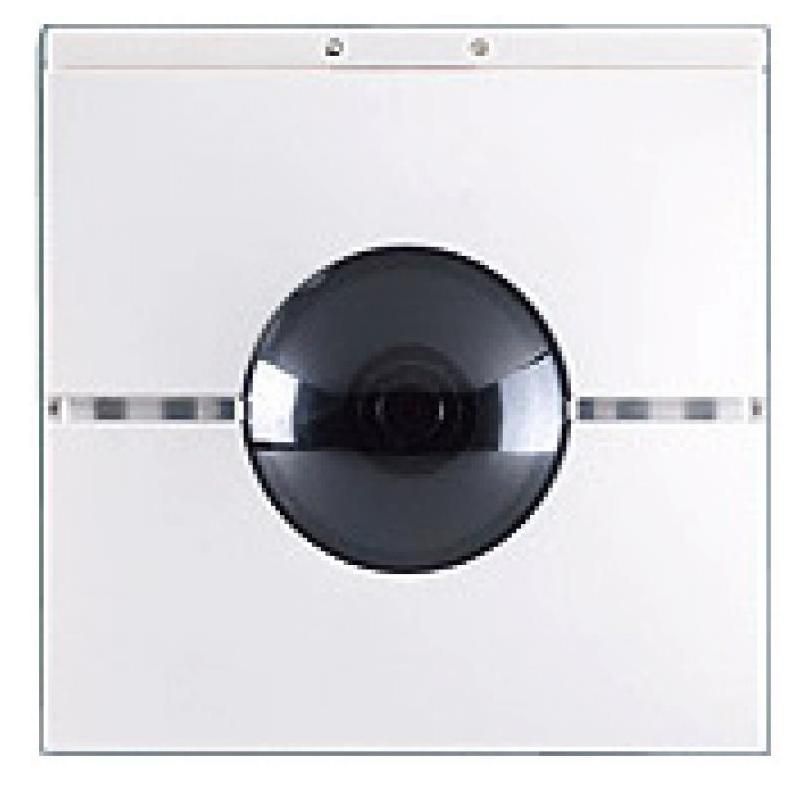

Alpha KMW B+W Camera Module, 3.8mm, White

Introducing the Alpha KMW B+W Camera Module-3.8MM-White, an advanced surveillance solution featuring 380 lines of resolution and built-in infrared illuminators. Designed for seamless integration with Alpha Communications / S.T.R.™ modular series door entry stations, this camera ensures high-quality video capture even in low light conditions, offering a remarkable viewing angle and robust build quality.

Alpha KMW Camera Features

• Resolution: 380 lines of resolution for clear and detailed video imaging.
• Lens: 3.6mm lens with a 92-degree angle of view for expansive coverage.
• Illuminators: Built-in infrared illuminators enable visibility in low-light scenarios with a sensitivity of 0.8 LUX.
• Power Supply: Operates on 15-18VDC (150MA), making it compatible with various power sources, including NGC20.
• Dimensions: Compact size of 3.94"w x 3.94"h (100mm x 100mm) fits easily into MT series modular panel trim frames.
• Mounting Height: Recommended installation height of approximately 5 feet (1.55 meters) from the finished floor for optimal performance.
• Service Tool: Requires model 13510 key/tool unit for servicing after installation.

Detailed Camera Specifications
