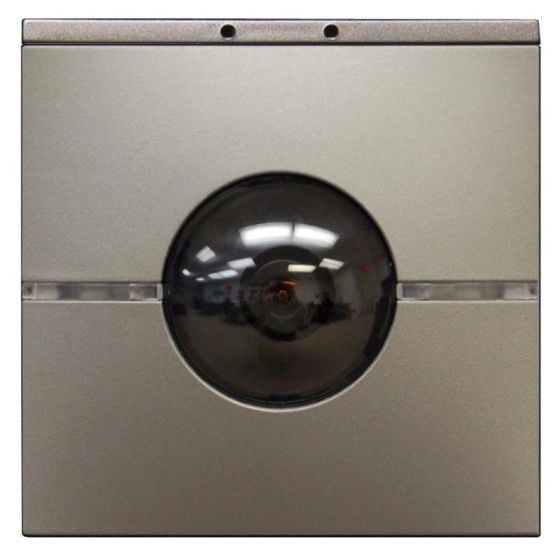

Alpha KM-CT Color Camera Module, 3.8mm, Titan

Introducing the Alpha KM-CT Color Camera Module, a high-quality imaging solution designed specifically for Alpha Communications / S.T.R.™ modular series door entry stations. With its robust titanium build, excellent resolution of 700 lines, and built-in infrared illuminators, this camera module ensures clear visibility in varying lighting conditions. Its compact size and easy installation make it an ideal choice for enhancing your door entry system's functionality.

Alpha KM-CT Camera Features

• High Resolution: 700 lines of resolution provide crystal clear video, ensuring you can see who is at your door with remarkable detail.
• Built-in I/R Illuminators: Equipped with infrared illuminators, the KM-CT allows for improved visibility in low light conditions, enhancing security at all hours.
• Wide Viewing Angle: The 3.6mm lens coupled with a 92 degree angle of view allows for a broad capturing range, ensuring that all visitors are easily visible.
• Compact Size: Measuring 3.94"w x 3.94"h (100mm x 100mm), the KM-CT is designed to fit seamlessly into existing modular panel trim frames.
• Low Light Performance: With a luminous sensitivity of just 2.5 LUX, this camera still performs well even in dim environments, providing dependable surveillance.
• Easy Installation: Designed to snap into the MT series modular panel trim frames, installation is straightforward and user-friendly.
• Power Requirements: Operates on 15-18VDC (150MA), making it compatible with the power supply model # NGC20 or equivalent for easy integration.

Detailed KM-CT Camera Specifications
