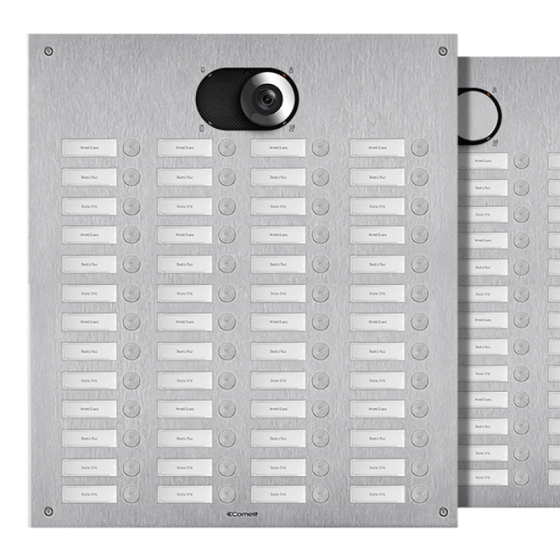

Comelit IX0452 Switch Front Panel with 52 Buttons, 4 Columns

The IX0452 from Comelit is a front plate for switch entrance panel in 2.5 mm thick brushed AISI 316 stainless steel. Adapter art. 1250U (supplied) offers the option of using the audio or audio/video module (not supplied), depending on the type of wiring applied (simplebus digital 2-wire or ViP). Complete with 52 pre-fitted, pre-wired buttons arranged in 4 columns. White LED nameplate backlighting. Nameplate replacement from the front. IK08 protection rating. To be finished with flush-mounted box or surface-mounted casing (not supplied). Dimensions (L x H x D): 409 x 502.1 x 2.5 mm.

Comelit IX0452 Camera Features

• Material: front plate for switch entrance panel in 2.5 mm thick brushed AISI 316 stainless steel for enhanced durability and aesthetic appeal.
• Adapter Inclusion: Adapter art. 1250U (supplied) facilitates the use of audio or audio/video module (not supplied) for versatile functionality based on wiring type.
• Button Configuration: Complete with 52 pre-fitted, pre-wired buttons arranged in 4 columns for organized accessibility.
• LED Backlighting: White LED nameplate backlighting with front replacement capability ensures visibility and ease of updating.
• Protection Rating: IK08 protection rating guarantees robust resistance to impact and environmental factors.

Comelit IX0452 Detailed Specifications
