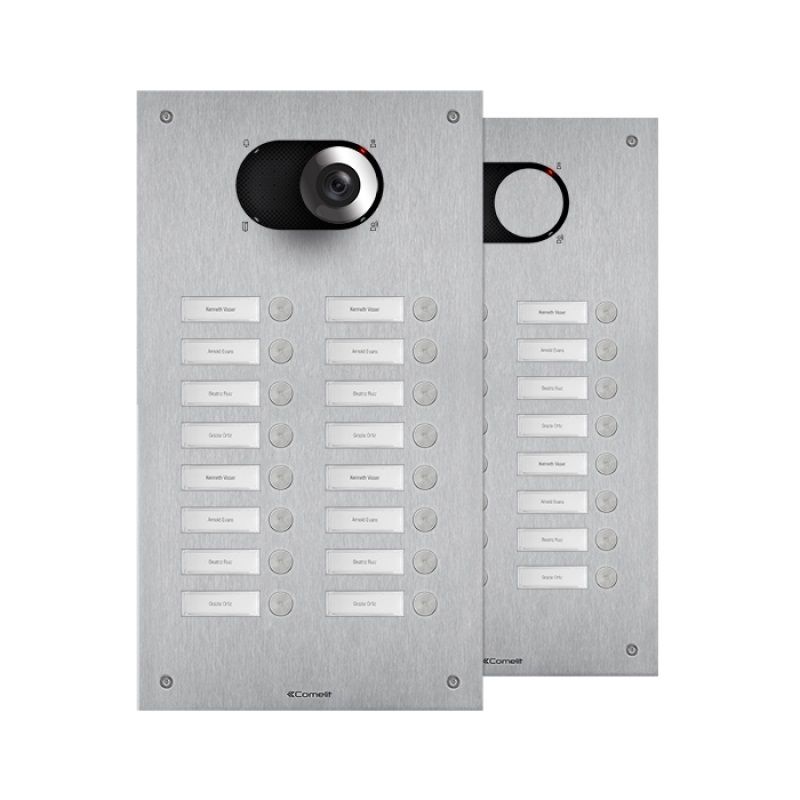

Comelit IX0216 Switch Front Plate with 16 Buttons 2 Columns

The Comelit IX0216 Switch Front Plate is a robust and functional entrance panel designed for seamless integration with audio or video modules. Crafted from 2.5 mm thick brushed AISI 316 stainless steel, this front plate combines durability with elegant styling. With its 16 pre-fitted, pre-wired buttons arranged in two columns and white LED nameplate backlighting, it provides both convenience and aesthetic appeal. Suitable for various wiring options, it ensures that your communication system is tailored to your specific needs.

Comelit IX0216 Front Plate Features

• Material: Made of 2.5 mm thick brushed AISI 316 stainless steel, ensuring long-lasting durability and resistance to corrosion.
• Button Configuration: Features 16 prefitted, pre-wired buttons arranged in 2 columns for easy access and efficient use.
• LED Backlighting: Equipped with white LED nameplate backlighting for high visibility, enhancing user interaction in low-light conditions.
• Modular Compatibility: Compatible with audio or audio/video modules (not supplied), allowing customization based on the wiring system used (Simplebus digital 2-wire or ViP).
• Front Nameplate Replacement: Allows easy nameplate replacement from the front, making updates straightforward without disassembly.
• Protection Rating: Rated IK08 for impact protection, suitable for high-traffic entrance areas.
• Installation Flexibility: Can be finished with either a flush-mounted box or surface-mounted casing (not supplied), providing versatile installation options.
• Compact Design: Dimensions (L x H x P): 216.4 x 395.7 x 2.5 mm, making it an ideal choice for various entrance panel designs.

Comelit IX0216 Detailed Specifications
