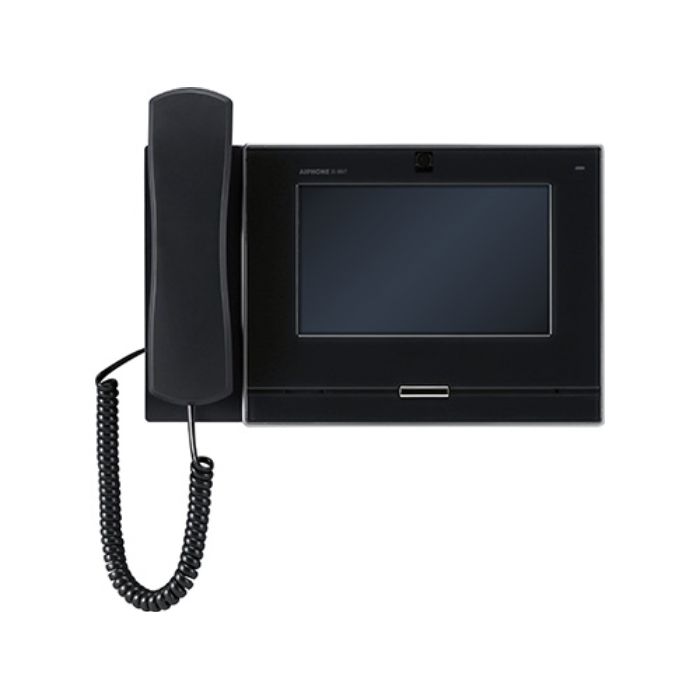

Aiphone IX-MV7-HB-JP IP Video Answering Station with Handset

The IX-MV7-HB-JP is an IP answering station with a 7" touchscreen. It connects to a network using Cat-5e/6 cable and is SIP compliant. The included desk stand can be used or the station can be mounted to a wall.

Audio and video of active conversations can be stored on a microSD™ card. Each IX-MV7-HB-JP can be used to monitor one station or scan monitor up to 500 stations within its address book. It has line supervision and scheduled device check of all addressed stations. It can page all units or select groups of units. The bell schedule can handle up to 50 events per day.

The answering station has eight speed dial buttons that can be used to call, page, monitor, or control a contact closure. It has a camera with privacy shutter. The IX-MV7-HB-JP can view a selected intercom’s camera as well as an associated ONVIF® Profile S camera by using the picture-in-picture function. Door release will only unlock the entrance that is associated with the connected door station. Stations can be called by using the directory or by direct dialing the station’s number.

Features

• SIP Compliant
• ONVIF® Profile S Compliant
• TAA compliant
• 7″ TFT LCD touchscreen
• Built-in camera (w/ privacy shutter)
• Hands-free or push-to-talk communication
• 8 customizable speed dial buttons
• Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
• Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
• 2 contact outputs
• 4 trigger inputs
• 8Ω 1/2 watt speaker output provides better coverage for announcements
• 600Ω audio input.
• UL certified
