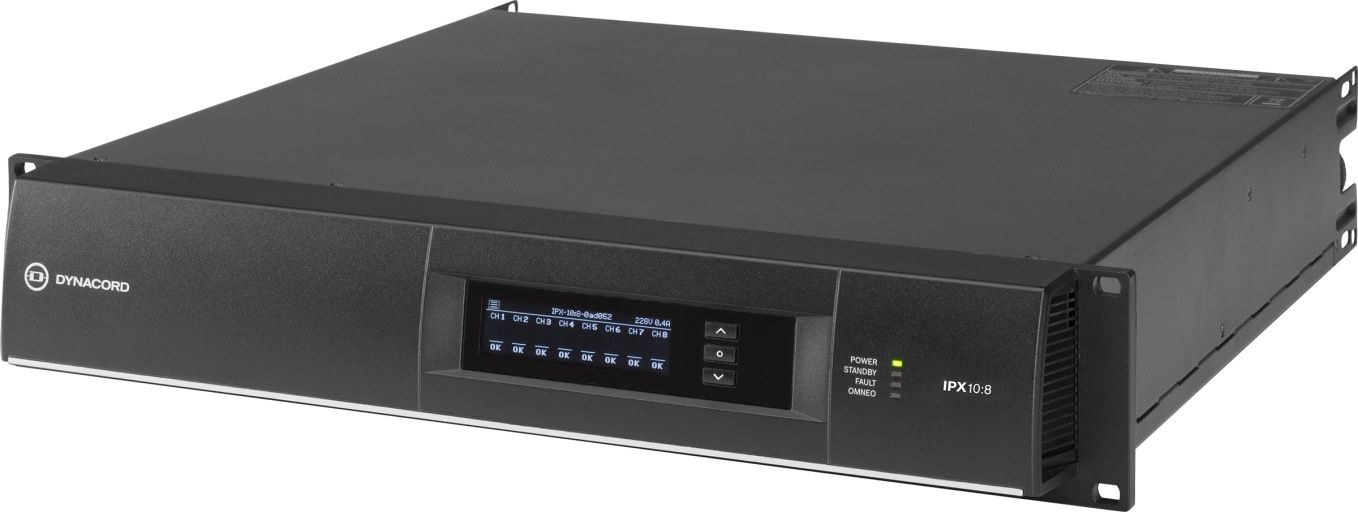

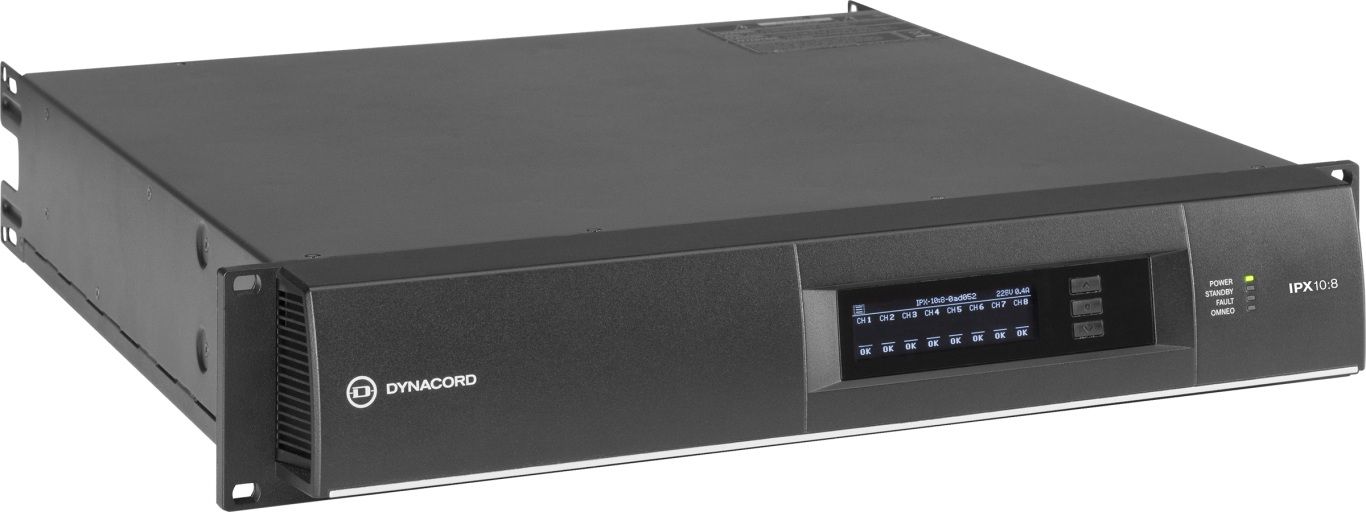

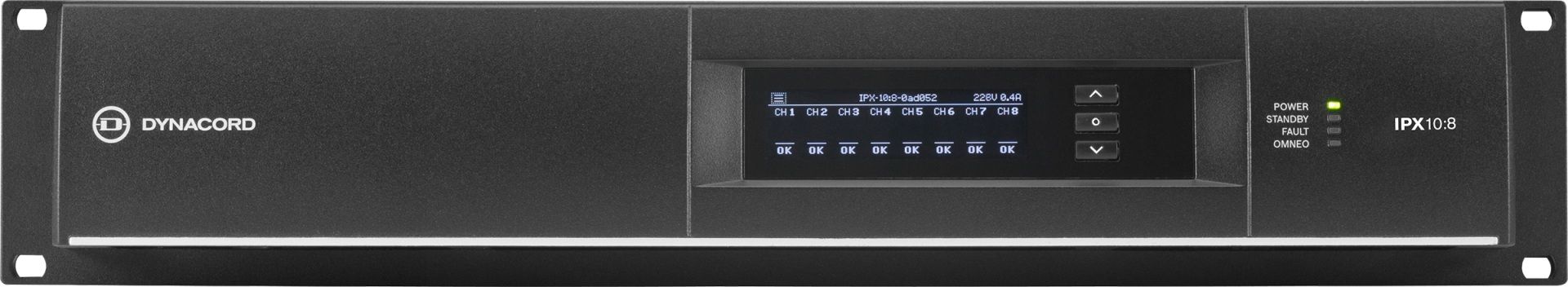

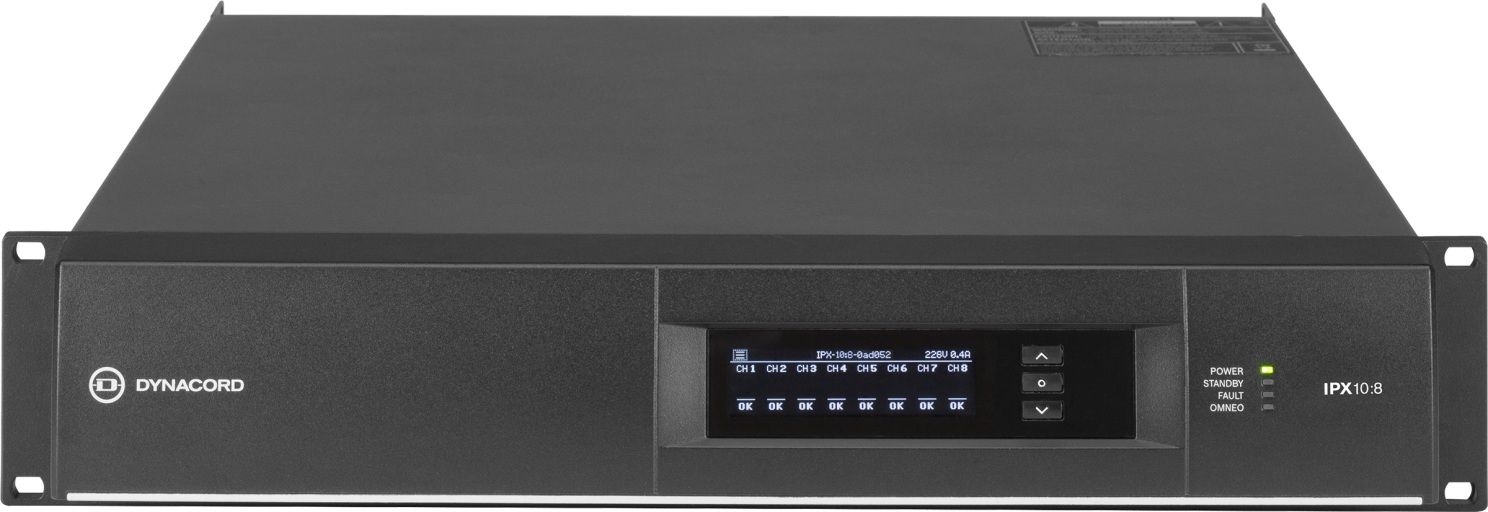

Bosch IPX10-8 Dsp Power Amplifier 8X1250W, Install
SKU
IPX10-8
Model No
IPX10-8
$8,386.18
Product Highlights
- 8 x 1250 W multi-channel installation DSP amplifier with digitally controlled PFC supply
- Fully integrated DSP with high-resolution 96 kHz processing and FIR Drive
- Dante and OCA integration via OMNEO with fallback options
- Parallel, bridged and parallel-bridged drive modes with 70/100V/140V/200V and low impedance operation
- High efficiency ecoRAIL technology for lower operating costs
Speak to an expert
Bosch IPX Series amplifiers are designed for fixed installation applications such as stadiums, arenas, theaters, and houses of worship. These dedicated high-power multi-channel amplifiers offer sophisticated speaker processing, ensuring superior audio performance. With integrated DSP processing capabilities, users can enjoy enhanced sound quality and control, while versatile channel operations cater to different loudspeaker requirements. The ecoRAIL technology further reduces operating costs by optimizing power consumption during idle periods, making it a reliable choice for demanding audio environments.
Features
- 8 x 1250 W multi-channel installation DSP amplifier: Adds reliable performance in demanding environments with digitally controlled PFC supply.
- Fully integrated DSP: High-resolution 96 kHz processing and FIR Drive enhances sound quality and speaker control.
- Dante and OCA integration via OMNEO: Seamless connectivity and redundancy with comprehensive fallback options.
- Parallel, bridged, and parallel-bridged drive modes: Versatile loudspeaker compatibility with 70/100V/140V/200V and low impedance operation.
- High efficiency ecoRAIL technology: Contributes to long-term savings and energy efficiency by reducing operating costs.
Bosch IPX10-8 DSP Power Amplifier Specifications
| Amplifier Type | 8 x 1250 W DSP |
| Frequency Response | 48 kHz / 96 kHz supported |
| Input Types | Analog, Dante, OCA via OMNEO |
| Modes of Operation | Low impedance, 70V/100V Direct Drive, 140V/200V Direct Drive |
| Power Supply | Digitally controlled interleaved PFC supply |
| Eco Mode | Yes, with full functionalities in idle mode |
| Connectivity Management | Integrated in IRIS-Net |
| Display | OLED display for local control and supervision |
SKU  | IPX10-8 |
|---|---|
| Manufacturer | Bosch |
