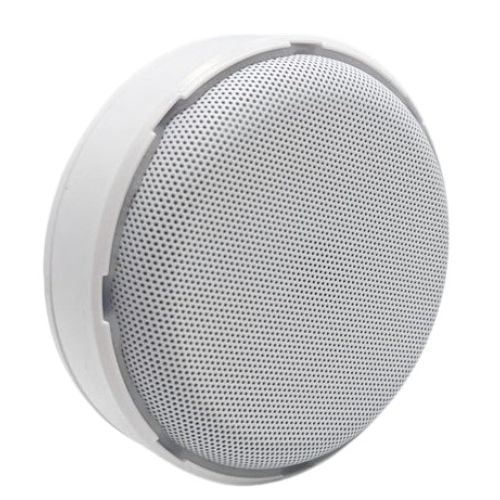

Hanwha Vision HNW-SS-804 Line-level Ceiling-Mounted Microphone
SKU
HNW-SS-804
Model No
HNW-SS-804
$298.76
Product Highlights
- Line level ceiling mounted microphone
- Omni-Directional pickup with 12’ radius/24’ diameter
- 12Vdc power required @20mA. 30Hz-15kHz. 2.2kΩ Output Impedance, 60dB SNR, 3 1/8”D x 1’H
Speak to an expert
The Hanwha Vision HNW-SS-804 is a high-performance line-level ceiling-mounted microphone designed to deliver superior sound quality in various environments. With omni-directional pickup capabilities and easy integration into your audio setup, this microphone ensures clear and reliable audio capture, making it ideal for conferencing, presentations, or recording.
Hanwha Vision HNW-SS-804 Microphone Features
- Design: Ceiling-mounted configuration allows for unobtrusive installation and ideal audio capture from above.
- Pickup Pattern: Omni-directional design offers a 12’ radius, ensuring comprehensive sound coverage in your space.
- Power Requirements: Operates on 12Vdc power at 20mA for efficient energy consumption while providing high-quality performance.
- Frequency Response: Captures sound frequencies from 30Hz to 15kHz, ensuring clarity in voice and sound transmission.
- Output Impedance: With a 2.2k? output impedance, it ensures compatibility with various audio systems.
- Signal to Noise Ratio: A 60dB SNR ensures minimal background noise, enhancing audio clarity.
- Compact Size: Dimensions of 3 1/8”D x 1’H make it easy to install without occupying much space.
Detailed Specifications for Hanwha Vision HNW-SS-804
| Model | HNW-SS-804 |
| Type | Ceiling-Mounted Microphone |
| Pickup Pattern | Omni-Directional |
| Radius | 12’ (24’ diameter) |
| Power Requirement | 12Vdc @ 20mA |
| Frequency Response | 30Hz - 15kHz |
| Output Impedance | 2.2k? |
| Signal to Noise Ratio | 60dB |
| Dimensions | 3 1/8”D x 1’H |
SKU  | HNW-SS-804 |
|---|---|
| Manufacturer | Hanwha Vision |
