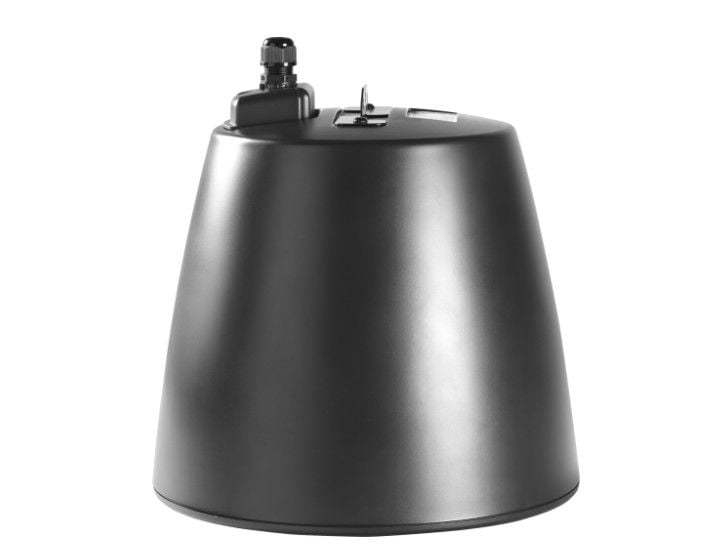

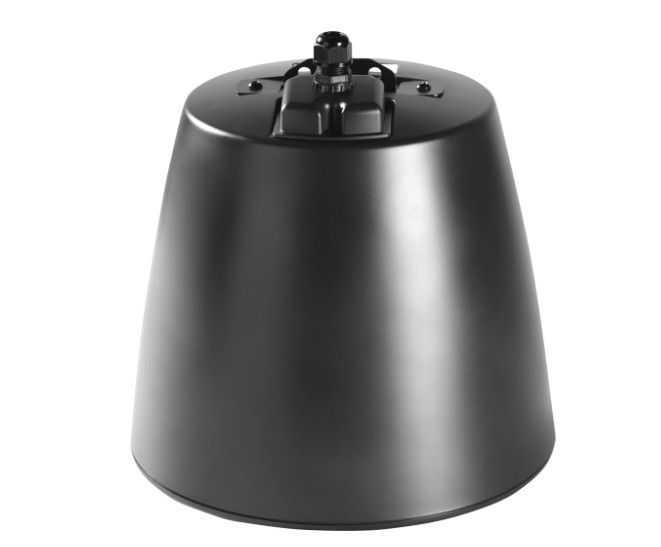

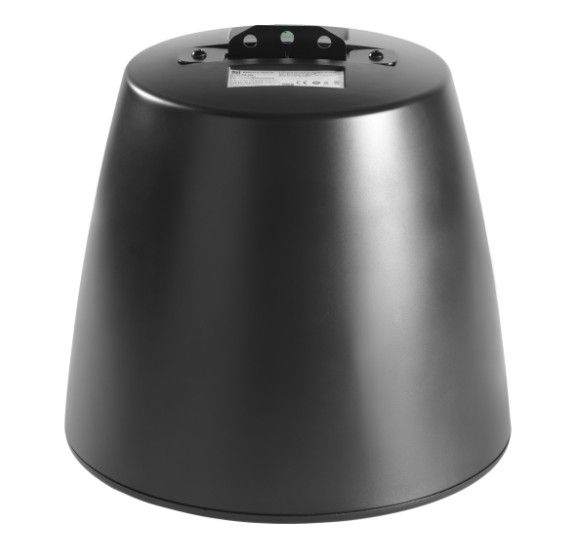

Bosch EVID-P6-2B Pendant Speaker 6.5"
SKU
EVID-P6-2B
Model No
EVID-P6-2B
$314.59
Product Highlights
- Full bandwidth overload protection
- Front baffle wattage tap adjustment
- Magnetic grille for easy tap adjustment access
- Indoor and outdoor use
- UL1480A and CSA C22.2 certified for indoor installations and protected outdoor installations
Speak to an expert
The Bosch EVID-P6.2 loudspeaker system delivers exceptional audio performance with its complete two-way pendant design, ensuring high-quality sound for both music and voice in various environments. This system features a robust construction with a sleek aesthetic, easy installation options, and comprehensive protection for electronic components, making it ideal for both indoor and outdoor settings.
Bosch EVID-P6.2 Speaker Features
- Full bandwidth overload protection: Safeguards the speaker from damage caused by excessive power levels, ensuring longevity and reliability in sound performance.
- Front baffle wattage tap adjustment: Allows easy switching between different power levels (1.88, 3.75W, 7.5W, 15W, or 30W), offering flexibility for various audio setups.
- Magnetic grille for easy tap adjustment access: Facilitates quick access to the front baffle for adjustments, enhancing user convenience during setup and maintenance.
- Indoor and outdoor use: Designed to withstand varying environments, making it suitable for a wide range of installation locations.
- UL1480A and CSA C22.2 certified: Ensures compliance with safety standards for both indoor and protected outdoor installations, providing peace of mind regarding installation quality and safety.
Bosch EVID-P6.2 Detailed Specifications
| Feature | Details |
|---|---|
| Speaker Type | Complete two-way pendant loudspeaker |
| Driver | 6.5-inch coax two-way with titanium dome tweeter |
| Crossover Network | 2nd order with comprehensive protection circuit |
| Transformer Options | 1.88 (70-V only), 3.75W, 7.5W, 15W, 30W or 8 ohm bypass |
| Construction Material | UL 94V-0 rated ABS for durability |
| Grille Finish | Semi-gloss black or white powder-coated enamel |
| Connection Type | 4-pin terminal block for easy wiring with 12 gauge wire |
| Compatibility | Designed to work with other EVID series speakers |
SKU  | EVID-P6-2B |
|---|---|
| Manufacturer | Bosch |
| Weatherproof | Yes |
