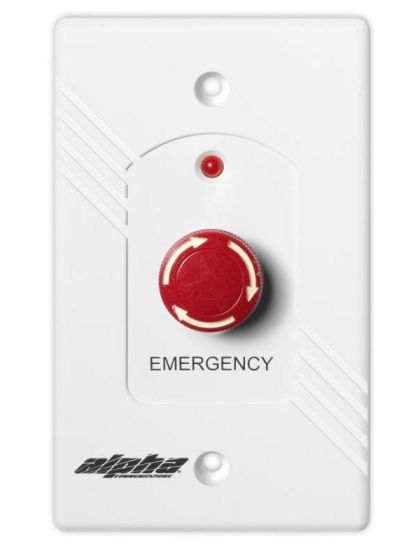

Alpha EPS339 Emergency Mushroom Push Station, Single-Gang Electrical Box

SKU
EPS339
Alpha EPS339 Emergency Mushroom Push Station, Single-Gang Electrical Box EPS339 by Alpha
Alpha EPS339 Emergency Mushroom Push Station, Single-Gang Electrical Box EPS339 by Alpha
Model No
EPS339
$167.00
Qty:

Product Highlights
    • U.L. Listed 1069 - to the latest standards
    • Simple and flexible operation
    • RED L.E.D. "Called Placed" indicator (flashing)
    • Call cancel only at point of origin.
    • Flame Retardant type ABS White Plastic Faceplate

The EPS339 from Alpha is a Emergency Push Station- Mushroom, Requires 1-Gang Electrical Box Has 'Cancel' Button Feature By Twisting Mushroom Button. The Alpha EPS339 Emergency Push Station includes a locking Mushroom-Style switch, and is used in any area where activation of an emergency station is required. All electronic components are mounted on a circuit board, including a reliable industry-proven DPDT switch for circuit initiation. The EPS339 includes a built-in RED indicator call-placed LED. The EPS339 may be used as an emergency station or as a staff assist emergency call station. The large mushroom-style button is easily activated, so that calls may be placed using an elbow, shoulder, etc., when using the hands is inconvenient or inappropriate. Calls are cancelled by turning the locking mushroom-style button clockwise.

Dome light and system annunciation vary according to the manner in which the EPS339 is connected, and which system it is used with. The EPS339 is used primarily with the AlphaLinQâ„¢ 100 series visual nurse-call system, but can be used and is backwards compatible with some older systems as well. The EPS339 is U.L. 1069 listed, to the latest standards.

Features

  • U.L. Listed 1069 - to the latest standards
  • Simple and flexible operation
  • RED L.E.D. "Called Placed" indicator (flashing)
  • Call cancel only at point of origin.
  • Flame Retardant type ABS White Plastic Faceplate
  • 0.945" diameter (24mm) RED Mushroom-Style Button
  • Corridor Zone Light Capability (optional)
SKU  EPS339
Manufacturer  Alpha
Intercom Type  Audio Intercom
Connection Method  Multi-Wire Digital Systems
Weatherproof   Indoor
Material  Plastic
