Alpha EPG2-DSF Stainless Steel Flush Digital Video Door Panel for G2+ System

Alpha EPG2-DSF Door Panel Camera Features

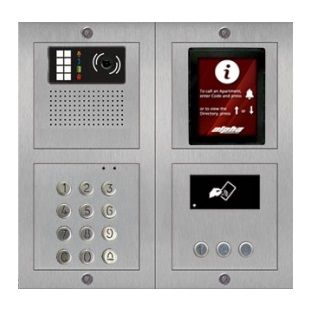

The EPG2-DSF from Alpha is a Door Panel Video Module is used exclusively with the G2+ series systems. The EPG2-DSF is designed using the Nexa series St. Steel door panels and modules. The EPG2-DSF has a 120° wide angle color camera, for a panoramic view, with white LEDs for low light conditions. The module is ADA compliant, with voice prompts and backlit symbols to assist hearing-impaired individuals. Each EPG2-DSF comes with the EL632/G2SE camera/speaker/microphone module, NX3002 and EL3422/GB2 display module, NX3401/GB2 navigation module and NX3301/GB2 digital-dial numeric keypad module. Included with the EPG2-DSF is the corresponding panel frame and flush housing, as well as a built-in prox. reader.

Features

• BUS-out connection: 2 wires without polarity for easy installation.
• Independent relays: 2 built-in relays for door and gate control, enhancing functionality.
• 12VDC output: Perfect for connecting to door strikes or a built-in N/O relay for convenience.
• Simple wiring: Utilizes 2-conductor non-polarized (loop) wiring for straightforward setup.
• Prox reader module: Built-in for added security options, with additional components required for full functionality.
• Adjustable volume levels: Communication volume can be tailored to user preferences.
• Multilingual voice messages: Available in 5 different languages, catering to diverse users.
• ADA visual signals: Front visuals notify panel status, assisting hearing-impaired individuals.
• Wide angle camera: 120° color camera with white LEDs for excellent night vision capabilities.
• Camera resolution: 520TVL (640 x 480, 0.3 Mp) for clear video quality.
• LED activation: Automatic intensity controlled activation in low light for improved nighttime visibility.
• Weather-resistant: Designed for use with the Nexa St. Steel (Inox) panels for durability.
• Includes CE620 flush housing: Complete installation package for user convenience.

Alpha EPG2-DSF Detailed Specifications
