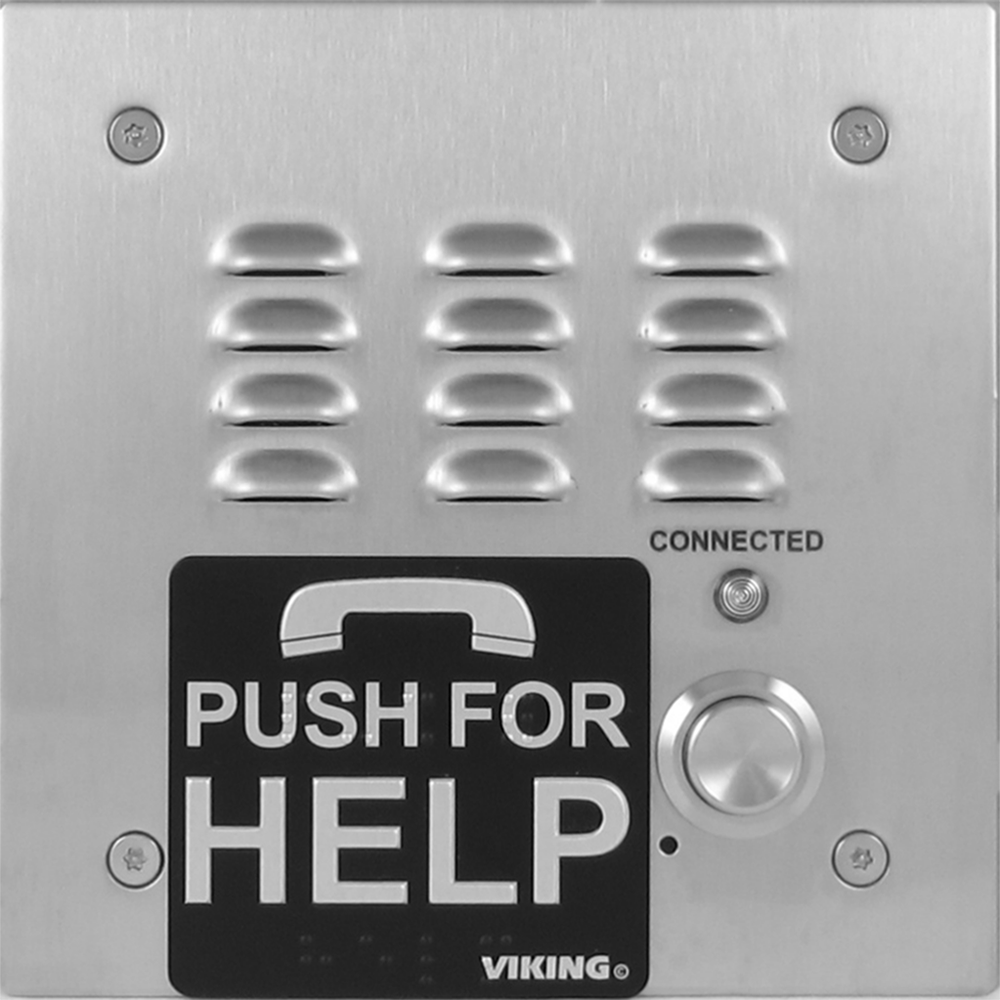

Viking E-1600-30A Flush Mount Stainless Steel Emergency Phone w/ Dialer & Digital Voice Announcer

The E-1600-30A ADA Compliant Emergency Phone is designed to provide quick and reliable handsfree emergency communication for any standard analog telephone line or analog phone system station port. The E-1600-30A meets ADA requirements for elevator / emergency telephones, and can be programmed from any touch tone phone. It can dial up to 5 programmable emergency numbers, as well as 2 central station numbers.

The E-1600-30A can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. Additionally, a DTMF touch tone code may also be delivered. A “Call Connected” LED can be initiated manually or automatically. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory. The E-1600-30A is phone line powered, requiring no batteries or external power and is compatible with common Central Station Monitoring equipment. For outdoor installations where the emergency phone unit is exposed to precipitation or condensation, use model E-1600-30A-EWP. For more information on Enhanced Weather Protection (EWP), see DOD 859.

Features

• Automatic Noise Canceling (ANC) feature for clear audio in noisy environments
• Meets the latest ASME A17.1 code when used with a Viking LV-1K Line Verification Panel, see DOD 246
• Meets ADA requirements for Emergency Phones:
  - Automatically lights the “Call Connected” LED
  - Transmits a unique location ID code or voice announcement
  - Grade 2 Braille label for the visually impaired
• Non-volatile digital voice announcer with 16 seconds of voice memory
• Advanced call progress detection
• Handsfree operation
• Phone line powered
• Non-volatile memory, no batteries required
• Marine grade 316 stainless steel
• Dials up to 5 emergency numbers
• Cycles through backup phone numbers on busy or ring-no-answer
• Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
• Programmable to auto-answer on incoming calls
• Remotely programmable
• Extended temperature range (-15°F to 130°F)
• Central Station Monitoring capability (dials 2 numbers)
• Flush mounts using the included rough-in box or surface mount using a Viking VE-5×5 Surface Mount Box (DOD 424)
