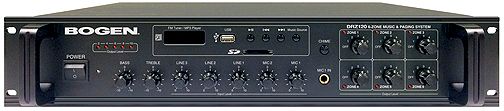

Bogen DRZ120 6-Zone Music & Paging System
The Bogen DRZ120 is a unique, self-contained 6-zone music and paging system for small- to medium-sized applications. It combines a digital FM tuner / MP3 player with seven (7) MIC & LINE inputs. It has a 120-watt amplifier capable of driving 4-16 ohm or 70-volt speaker systems. The DRZ120 permits connection of up to six individual paging and music zones. The DRZ120 also features Bass and Treble controls and a 5-segment LED output signal level indicator. The built-in FM tuner uses a PLL synthesizer to provide accurate frequency selection. MP3 audio can be played from files (.mp3 & .wav) accessed via the USB or SD card slots on the front panel. The MIC1 Input can be set for VOX-activated override/muting of the other audio inputs. Additionally, there is a push-button activated Chime feature that produces a short, melodic series of four ascending bell-like alert tones which are played across all outputs.
Features
- Self-contained, 6-zone music and paging system: Perfect for small- to medium-sized environments, combining essential features into one unit.
- 120-watt audio output: Provides powerful sound to effectively cover your chosen area.
- Compatibility with speaker systems: Use with 4-16 ohm or 70-volt systems for versatile installation options.
- Zone management: Enable from 1-6 zones for tailored music or paging experience.
- 7 total audio inputs: Offers flexibility with MIC1-4 and LINE1-3 inputs for various audio sources.
- BALANCED MIC1 input: Uses a front 1/4” TRS connector for high-quality sound.
- VOX-activated muting: MIC1 can mute other audio inputs, ideal for announcements.
- Multiple RCA inputs: LINE1-3 connections for easy integration with other devices.
- Digital FM Tuner: Ensures accurate frequency selection with a PLL synthesizer.
- Advanced tuning options: Auto station search and manual tuning for personalized listening.
- Back-lit LCD tuner display: Easy visibility even in low light.
- FM antenna connector: 75? coaxial for better signal reception.
- Extensive FM station presets: Over 800 presets for quick access to your favorite channels.
- Bass and Treble controls: Adjust sound quality to fit your preferences.
- Infrared Remote Controller: Convenient remote for easy operation of FM and MP3 player features.
- Chime button: Priority output feature for instant alerts.
- LED output level meter: 5-segment display for monitoring audio levels.
- AUX post-mix LINE output: For connecting additional equipment.
- Power-on LED indicator: Clearly shows operational status.
- Rack-mountable: Designed for easy installation with integral brackets.
- UL Standard 60065 listed: Ensured safety for U.S. and Canada compliance.
- FCC Part 15 compliant: Meets regulatory standards for electromagnetic interference.
- Standard operating voltage: Works on nominal 120V AC, 60 Hz.
Detailed Specifications for Bogen DRZ120
| Feature | Details |
| Type | 6-Zone Music and Paging System |
| Audio Output | 120-watt (into 8-ohms) |
| Speaker Compatibility | 4-16 ohm or 70-volt systems |
| Total Inputs | 7 (MIC1-4, LINE1-3) |
| MIC1 Input | Balanced 1/4” TRS connector |
| VOX Feature | Muting control for MIC1 over other inputs |
| Tuner Type | Digital FM with PLL synthesizer |
| FM Presets | Over 800 channels |
| Controls | Bass and Treble adjustments |
| Remote Control Functions | Volume, channel selection, MP3 controls |
| Chime Feature | Push-button activated alert tones |
| LED Indicators | 5-segment output level meter |
| Power Requirements | 120V AC, 60 Hz |
| Mounting | Rack-mountable with brackets |
SKU  | DRZ120 |
|---|---|
| Manufacturer | Bogen |
| # of Areas | 6 |
