Bogen DPM-MAIN Digital Redundant Loop Paging Microphone, Main Unit
SKU
DPM-MAIN
Model No
DPM-MAIN
$1,147.00
Product Highlights
- Programmable buttons for zone paging, event triggering, recording, message routing, message playing button
- Up to 8 paging consoles can be connected to BTQ-SL8, and 16 on BTQ-VM4/VM8/SG8; the wiring can be daisy-chain or in a redundant loop
- Each DPM-MAIN can attach one DPM-EVA, and up to 30 DPM-KPD linked by flat cable
- Full monitoring of the microphone capsule, device online etc.
- 2 x 3.5 mm mini-jack (earphone and microphone)
Speak to an expert

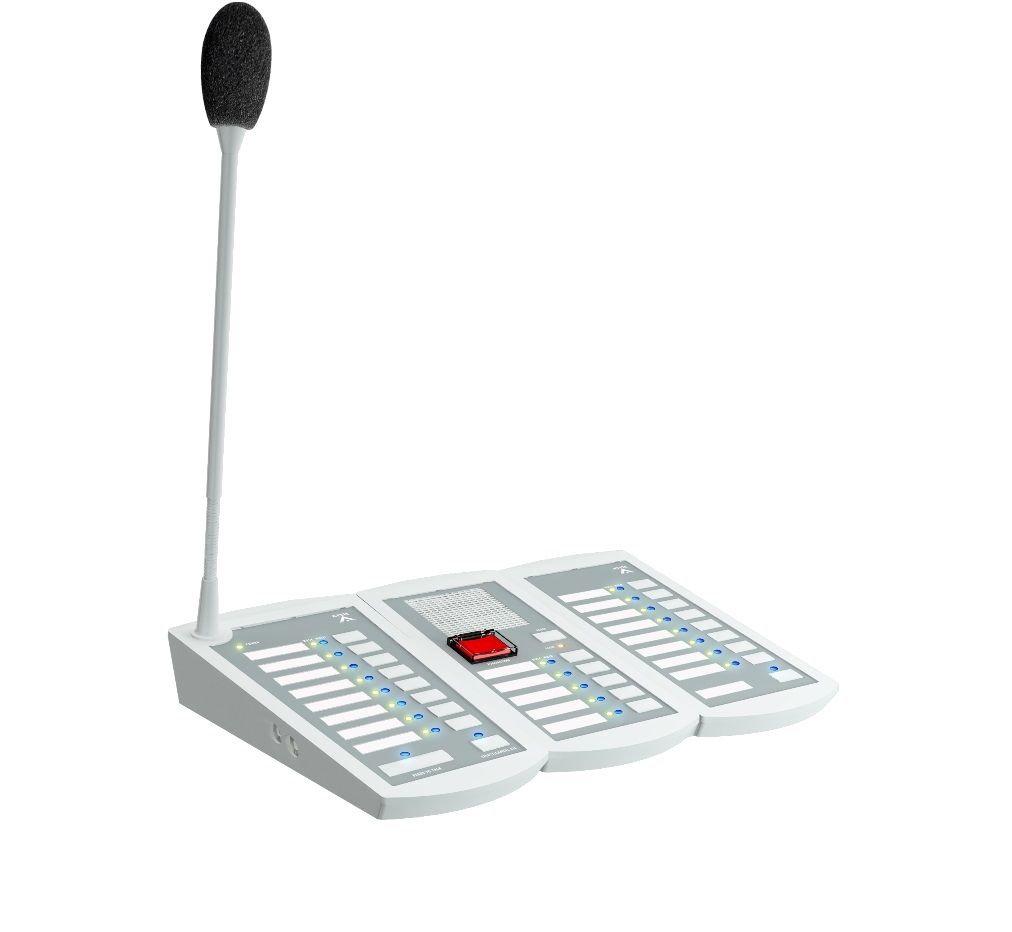

The DPM-MAIN Digital Redundant Loop Paging Microphone is a versatile and efficient paging console designed for seamless communication in various environments. With programmable buttons and advanced features, this main unit enhances your paging capabilities, ensuring quick and reliable message broadcasting.
Bogen DPM-MAIN Key Features
- Programmable Buttons: Customize your paging experience with buttons for zone paging, event triggering, recording, and message routing, allowing for tailored communication solutions.
- Multiple Connectivity: Supports up to 8 paging consoles connected to BTQ-SL8, and 16 on BTQ-VM4/VM8/SG8, using daisy-chain or redundant loop wiring for flexible installation.
- Expandable System: Each DPM-MAIN can attach one DPM-EVA and link up to 30 DPM-KPD by flat cable, ensuring scalability for growing communication needs.
- Full Monitoring: Monitor microphone capsule conditions and device status in real time for increased reliability and performance oversight.
- Multiple Audio Connectors: Equipped with 2 x 3.5 mm mini-jack ports (earphone and microphone) for versatile audio options.
- Automatic Gain Control: The AGC function adjusts audio levels automatically for optimal sound clarity in various environments.
- Reliable Connections: Utilizes STP CAT5/6 cable with a shielded RJ45 connector for secure links to controllers and secondary units, minimizing interference.
- Energy Efficient: Extremely low power consumption during standby mode (<1W) contributes to overall energy savings.
Bogen DPM-MAIN Detailed Specifications
| Feature | Details |
| Model | DPM-MAIN |
| Programmable Buttons | Zone paging, event triggering, recording, message routing |
| Connected Consoles | Up to 8 to BTQ-SL8; Up to 16 to BTQ-VM4/VM8/SG8 |
| Expansion Capability | 1 DPM-EVA, up to 30 DPM-KPD |
| Monitoring | Microphone capsule and device status monitoring |
| Audio Connectors | 2 x 3.5 mm mini-jack (earphone/microphone) |
| Gain Control | Automatic Gain Control (AGC) |
| Cable Type | STP CAT5/6 with shielded RJ45 connectors |
| Power Consumption | Less than 1 watt in standby mode |
SKU  | DPM-MAIN |
|---|---|
| Manufacturer | Bogen |
