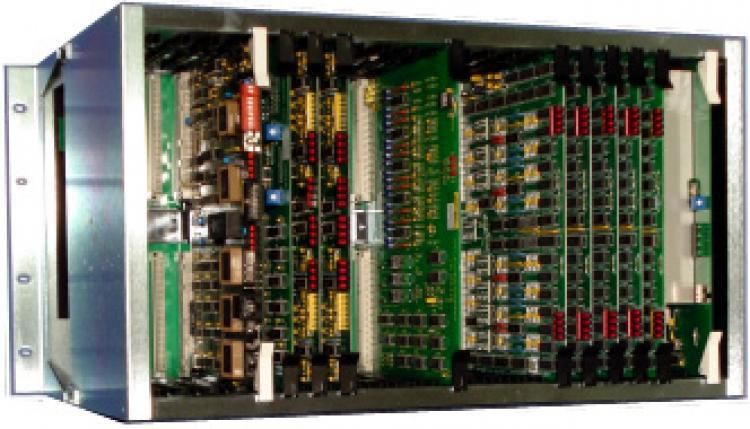

Alpha CB901EX-224 Central Exchange Unit, 224 Cap

The CB901EX-224 from Alpha is a fully electronic, microprocessor controlled system, which fully satisfies the requirements for a modern and effective internal communication system. The system is modular in concept and the central exchange can be expanded in multiples of 8 stations, up to a maximum of 240 total stations (masters and/or remotes). The central exchange has a minimum of 15 conversation paths (links), permitting up to (15) simultaneous conversations. More links can be added as an optional upgrade and multiple central exchanges can be linked together to further increase system capacity.

Alpha CB901EX-224 Central Exchange Unit Features

• Clear two-way communications: Ensures effective dialogue between users, enhancing communication clarity.
• Hands-free/loudspeaking: Facilitates group discussions without the need for handheld devices, improving ease of use.
• Confidential/Softspeaking capabilities: Allows private conversations, maintaining user privacy within the system.
• Manual Simplex operation at master stations: Enables straightforward control over communications, giving users flexibility.
• Microphone Cut-Off: Prevents inadvertent transmissions, keeping conversations secure and controlled.
• Camp-on busy extension: Ensures important calls are not missed, enhancing reliability for critical communications.
• All-Call (standard): Instantly communicates with all stations, ensuring information is quickly disseminated.
• Simple home-run wiring: Streamlines installation, resulting in reduced setup time and costs.

Alpha CB901EX-224 Detailed Specifications
