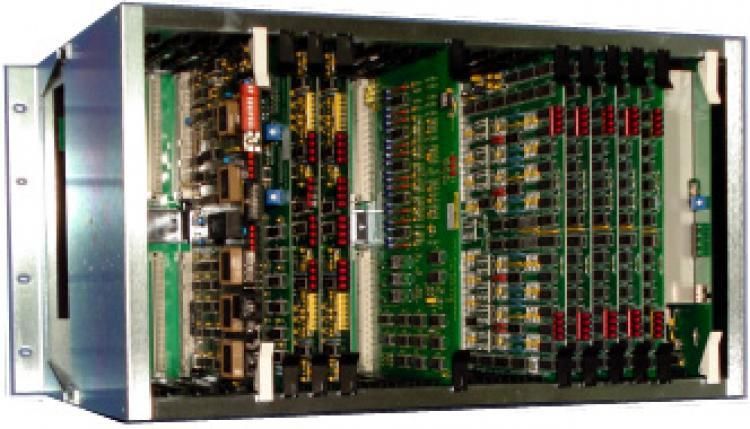

Alpha CB901EX-216 Central Exchange Unit, 216 CAP

The CB901EX-216 from Alpha is a fully electronic, microprocessor controlled system, which fully satisfies the requirements for a modern and effective internal communication system. The system is modular in concept and the central exchange can be expanded in multiples of 8 stations, up to a maximum of 240 total stations (masters and/or remotes). The central exchange has a minimum of 15 conversation paths (links), permitting up to (15) simultaneous conversations. More links can be added as an optional upgrade and multiple central exchanges can be linked together to further increase system capacity.

Alpha CB901EX-216 Communication Features

• Clear two-way communications: Ensures effective and uninterrupted conversations between users.
• Hands-free/loudspeaking: Allows users to communicate without needing to hold a microphone, ideal for multitasking.
• Confidential/Softspeaking capabilities: Facilitates private conversations, enhancing security in communications.
• Manual Simplex operation at master stations: Offers flexibility in communication methods for different user needs.
• Microphone Cut-Off: Provides added privacy by allowing users to prevent audio capture when needed.
• Camp-on busy extension: Enables users to wait for the availability of busy extensions, ensuring efficient communication.
• All-Call (standard): Simplifies announcements and alerts by broadcasting to all stations simultaneously.
• Simple home-run wiring - simple to install: Eases installation processes with straightforward wiring, saving time and costs.

Detailed Specifications for Alpha CB901EX-216
