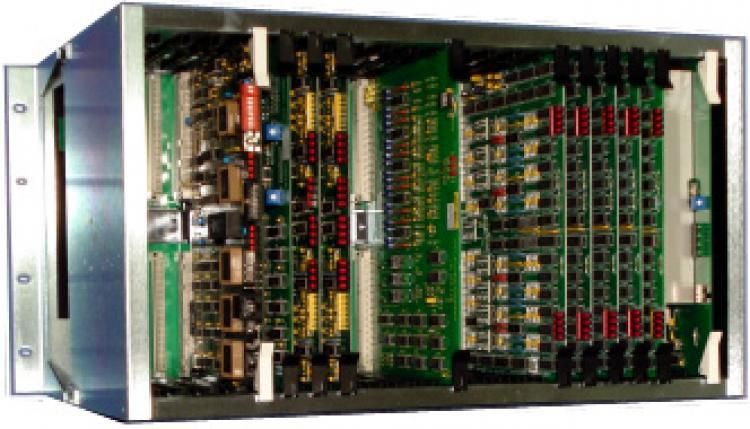

Alpha CB901EX-184 Central Exchange Unit, 184 CAP

The CB901EX-184 from Alpha is a fully electronic, microprocessor controlled system, which fully satisfies the requirements for a modern and effective internal communication system. The system is modular in concept and the central exchange can be expanded in multiples of 8 stations, up to a maximum of 240 total stations (masters and/or remotes). The central exchange has a minimum of 15 conversation paths (links), permitting up to (15) simultaneous conversations. More links can be added as an optional upgrade and multiple central exchanges can be linked together to further increase system capacity.

Alpha CB901EX-184 Central Exchange Unit Features

• Clear two-way communications: Ensures effective interaction between users, enhancing overall communication quality.
• Hands-free/loudspeaking: Facilitates convenient conversations without needing to hold the device.
• Confidential/Softspeaking capabilities: Supports private discussions, keeping sensitive information secure.
• Manual Simplex operation at master stations: Allows controlled communications for specific use cases when needed.
• Microphone Cut-Off: Provides an option to mute the microphone for privacy during calls.
• Camp-on busy extension: Lets users queue for a line, ensuring important calls can be connected.
• All-Call (standard): Enables announcements to all stations, perfect for urgent communications.
• Simple home-run wiring - simple to install: Streamlines installation processes, saving time and reducing setup complexity.

Alpha CB901EX-184 Central Exchange Unit Detailed Specifications
