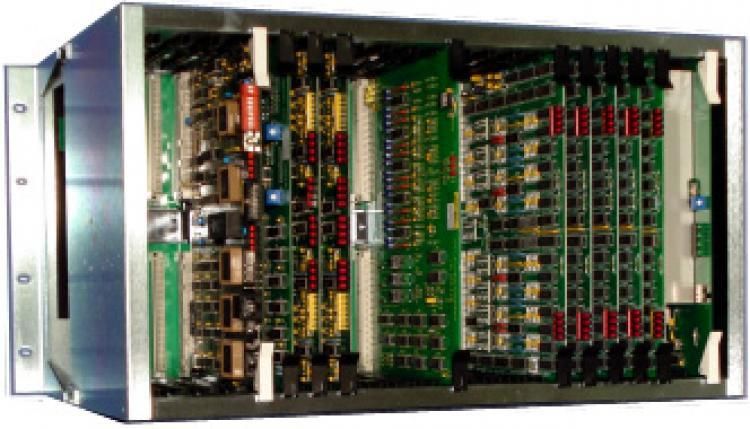

Alpha CB901EX-112 Central Exchange Unit, 112 CAP

The CB901EX-112 from Alpha is a fully electronic, microprocessor controlled system, which fully satisfies the requirements for a modern and effective internal communication system. The system is modular in concept and the central exchange can be expanded in multiples of 8 stations, up to a maximum of 240 total stations (masters and/or remotes). The central exchange has a minimum of 15 conversation paths (links), permitting up to (15) simultaneous conversations. More links can be added as an optional upgrade and multiple central exchanges can be linked together to further increase system capacity.

Alpha CB901EX-112 Communication Features

• Clear Communication: Ensures high-quality, audible exchanges for seamless conversations.
• Hands-Free Operation: Allows for convenient loudspeaking without the need for a handset.
• Confidential Communication: Softspeaking capabilities provide discreet communication options.
• Manual Simplex Operation: Provides flexibility at master stations for user-controlled conversations.
• Microphone Cut-Off: Enhances privacy by allowing the user to disable the microphone when needed.
• Camp-On Busy Extension: Allows users to hold and wait for an available line, improving communication efficiency.
• All-Call Feature: Standard inclusion allows for broadcasting announcements to all connected units.
• Simple Wiring: Easy to install with home-run wiring, saving time and installation costs.

Alpha CB901EX-112 Detailed Specifications
