Alpha BRA Controller Board for Digital-Dial Systems
Model No
BRA
$437.45
Product Highlights
- Non-returnable or refundable
Speak to an expert

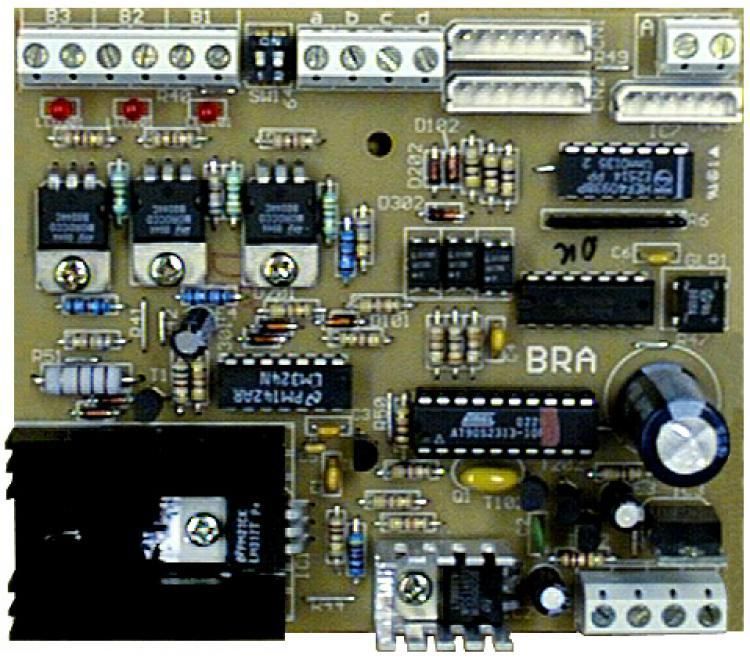

The Alpha BRA Controller Board is an advanced digital dial system designed to enhance intercom and video-intercom capabilities. When paired with the BRK16 relay cards, DB1 series LCD displays, and EMDB1 keypad modules, this board enables seamless communication with up to 239 stations, offering exceptional versatility and performance.
Alpha BRA Controller Board - Key Features
- Digital Dialing Capability: Facilitates communication with up to 239 intercom/video stations by using 15 BRK16 units.
- Time-Delayed Relay Closures: Each BRK16 unit provides 16 dry contact relay closures, ensuring reliable activation of call signals.
- Low-Voltage Operation: Compatible with Safe Low-Voltage Class II wiring for enhanced safety and efficiency.
- Easy Installation: Includes a plastic 'Din Rail' mounting bracket for straightforward surface mounting on finished walls.
- Reliable Connections: Positive screw terminal connectors ensure secure and stable connections.
Alpha BRA Controller Board - Detailed Specifications
| Product Type | Digital Dial Controller Board |
| Compatibility | BRK16 relay cards, DB1 LCD displays, EMDB1 keypad modules |
| Max Stations | Up to 239 intercom/video stations |
| Relays | Each BRK16 provides 16 time-delayed dry contact closures |
| Mounting Options | Surface mount with screws or Din Rail bracket |
| Connection Type | Positive screw terminal |
| Voltage Class | Safe Low-Voltage Class II |
SKU  | BRA |
|---|---|
| Manufacturer | Alpha |
| Intercom Type | Video/Audio Intercom |
| Connection Method | Multi-Wire Digital Systems |
| Material | Plastic |
