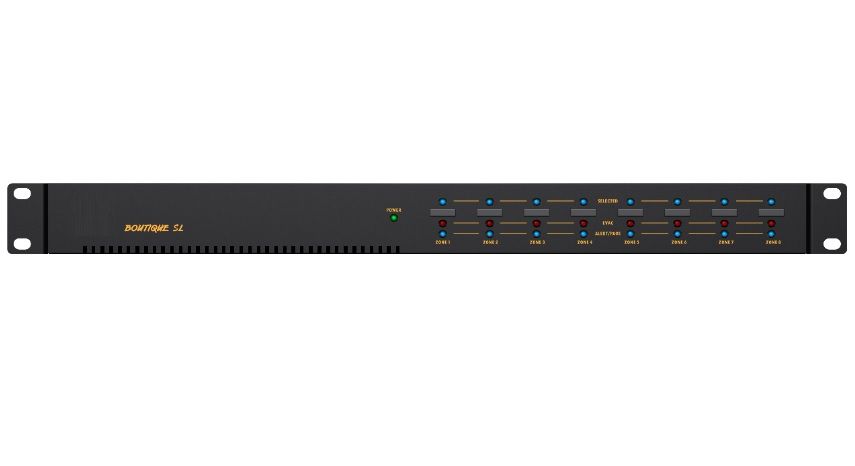

Bogen BOUTIQUE SL8 Scalable PAVA System Auxiliary Unit, 8 Zone, DigiLink
SKU
BOUTIQUE SL8
Model No
BOUTIQUE SL8
$1,405.79
Product Highlights
- Support up to 256 zones connected to 31 x SL8 via DigiLink local network
- Control, management and monitoring via web browser
- Both background music playing and paging can simultaneously proceed
- Enhanced loudspeaker line surveillance for AB-zoned installation
- Extremely low power consumption during standby mode (3.5W)
Speak to an expert
The Bogen BOUTIQUE SL8 Scalable PAVA System Auxiliary Unit is designed to enhance your sound distribution capabilities by extending your existing BOUTIQUE-VM4/VM8 main controller. With the ability to add 8 additional speaker zones and a total capacity of up to 256 zones, this unit ensures optimal performance in any environment. Features like advanced monitoring, low power consumption, and flexible control options make it a reliable choice for efficient audio management.
Bogen BOUTIQUE SL8 System Features
- Zone Expansion: Support up to 256 zones connected to 31 x SL8 via DigiLink local network, allowing extensive scalability for large installations.
- Web-Based Control: Control, management, and monitoring via web browser provides user-friendly access to system settings, enhancing operational efficiency.
- Simultaneous Functionality: Both background music playing and paging can simultaneously proceed, ensuring versatile audio management for any venue.
- Loudspeaker Line Surveillance: Enhanced loudspeaker line surveillance for A/B-zoned installation offers peace of mind with robust monitoring capabilities.
- Eco-Friendly Design: Extremely low power consumption during standby mode (3.5W) minimizes energy usage while maintaining performance.
- Flexible Installation: Volume attenuators can be installed on monitored speaker lines without loop back cable, simplifying setup and adjustments.
- Third Party Integration: Third party control via RS232 or Ethernet enables compatibility with existing systems and remote operation.
Bogen BOUTIQUE SL8 Detailed Specifications
| Feature | Details |
| Speaker Zone Capacity | Supports up to 256 zones through 31 x SL8 units |
| Power Handling | 1000W speaker load per zone, 2000W max per unit |
| Input Contacts | 9 monitored EVAC inputs triggered by dry contact or relay |
| Control Inputs/Outputs | 8 logic control inputs and 8 relay control outputs |
| Monitoring | Full system monitoring from microphone to loudspeaker line |
| Power Consumption | Standby mode power consumption of only 3.5W |
| Control Interface | Digital paging and control console interface |
| Compliance | Meets EN54-16 and UL2572 standards |
SKU  | BOUTIQUE SL8 |
|---|---|
| Manufacturer | Bogen |
