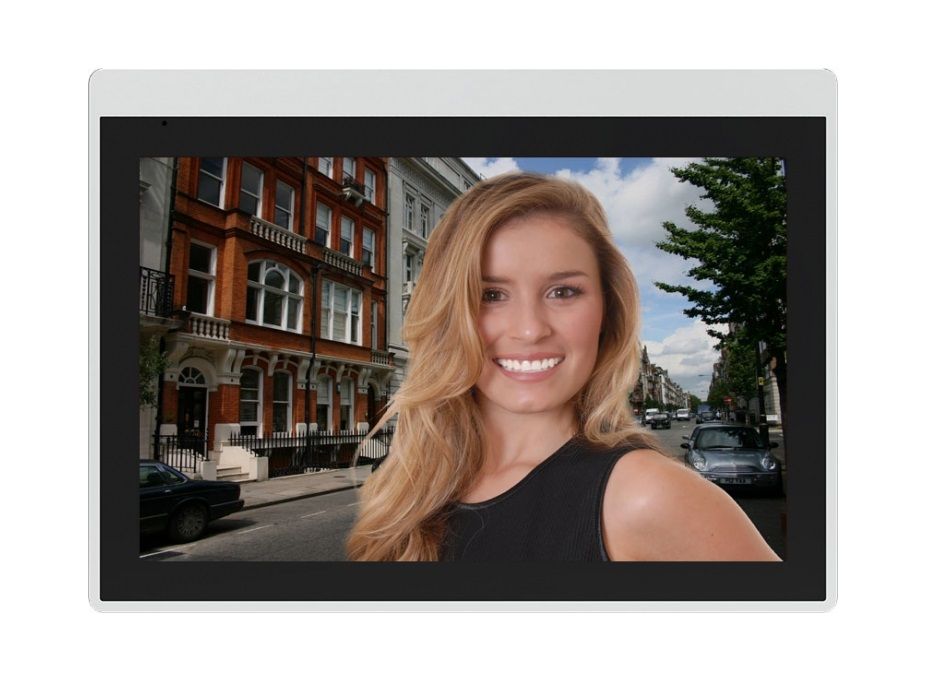

Alpha AT1000MS 10.0" Touchscreen Video Monitor

The Alpha AT1000MS is a state-of-the-art 10.0" Touchscreen Video Monitor designed for modern communication needs in any building size. This advanced device integrates a user-friendly interface with high-quality video intercom capabilities, ensuring seamless connectivity and monitoring. Its standout features include a large, crystal-clear touchscreen, enhanced voice operation, and ease of installation, making it a valuable addition to any security system.

Alpha AT1000MS Camera Features

• Screen Size: 10.0" (diagonal) Crystal Clear Color TFT LCD Capacitive Touch Video Screen - Provides vibrant visuals for superior monitoring capabilities.
• Resolution: 1024 x 600; Brightness: 300nits; 800:1 Contrast; 16M colors up to 720p - Ensures sharp, detailed images for easy identification.
• Connection: Uses simple CAT5 / CAT6 LAN wiring and RJ45 connectors with 10/100 Mbps Ethernet - Simplifies installation and enhances connectivity.
• Power: Monitors connect to a PoE switch output or PoE injector (PoE IEEE802.3af) - Allows for a cleaner setup without the need for additional power adapters.
• Voice Operation: Enhanced Duplex Hands-free Digital Voice Operation with echo canceling processor - Ensures clear communication without disruptive background noise.
• Installation Flexibility: Easy Installation (surface or optional desk using SOB-UNI adapter) - Adaptable for various settings and user preferences.
• SIP Compatibility: SIP v1 (RFC2543) and SIP v2 (RFC3261) - Supports both Static IP and DHCP for versatile networking.
• Design: Rugged and Reliable, with a low-profile surface monitor that protrudes only 0.87" from the wall - Aesthetic and functional, fitting seamlessly into any environment.
• User Interface: Intuitive Graphic User Interface (GUI) with US or European electrical wall box mounting - Easy to navigate for enhanced user experience.
• Concierge Communication: Call to any concierge station and optional panic call - Increases safety by allowing quick access to assistance.
• Multi-Talk Path System: Simultaneous voice talk path from every door station and concierge station - Facilitates effective communication across multiple points.

Alpha AT1000MS Detailed Specifications
