Alpha 6670 4 Port Video Distributor Unit, Nocoax

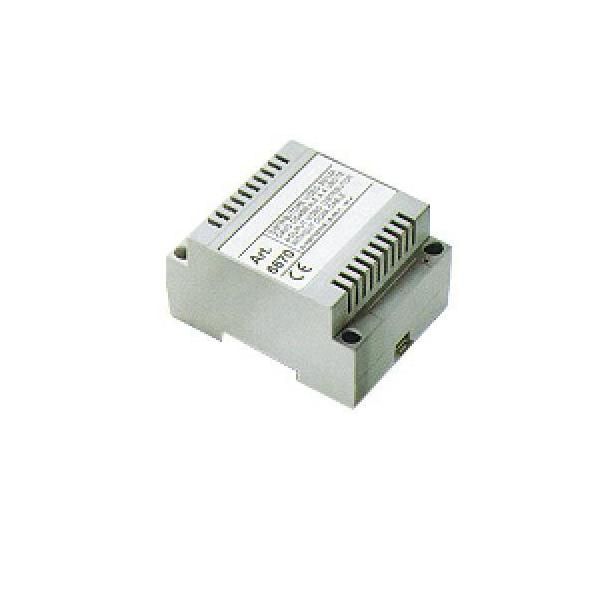

Alpha 6670 4 Port Video Distributor Unit

The 6670 from Alpha is a 4 port video distributor, Nocoax, used with 6568/117 type system amplifier/power supply only. The Alpha Elvox 6670 'NoCoax' video distributor unit is used only with the 6306 video-intercom systems (or equivalent). The 6670 is used when the video signal from the lobby entry camera(s) must be split (distributed) to several coaxial cables. The 6670 gets its DC power from the system's power supply. All 6670 connections are positive screw terminal type. 6670 has four (4) video outputs. When multiple 6670's are used, for systems requiring more than four (4) outputs, multiple 6670 units may be "daisy-chained" to provide outputs in multiples of four (4).

Features

• Easy Installation: Easily installs right on finished wall surface or in optional junction box - Simplifies installation and saves time.
• Safe Operation: Operates on safe low-voltage Class II wiring - Ensures safe operation with minimal risk of electrical hazards.
• Reliable Connections: Positive screw terminal connectors - Provides reliable connections and easy termination of wires.
• Effective Distribution: Provides 4 separate amplified video outputs - Distributes video signals effectively to multiple locations without degrading quality.
• Expandable Capability: Can be "daisy-chained" when more than 4 video outputs are needed - Offers flexibility in expanding system capabilities as required.

Detailed Specifications for Alpha 6670
