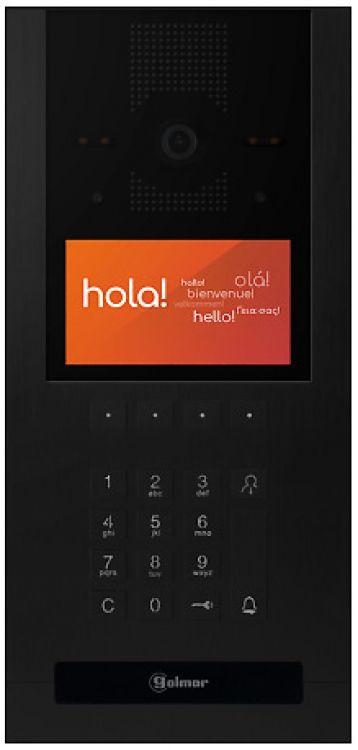

Alpha 6502-G2-BLACK Digital Video Door Panel for G2+ System Black
- BUS-out connection, 2 wires without polarity
- 2 independent relays build-in (i.e. for Door and Gate)
- Built-in Tamper Alarm
- Rugged 5mm thick Black Anodized Aluminum faceplate
- Uses simple 2-conductor non-polarized (loop) wiring
Alpha 6502-G2-BLACK Digital Video Door Panel Features
The Alpha Communications 6502/G2 BLACK Black Anodized Aluminum Video Door Panel is used exclusively with the G2+ series systems. The 6502/G2 BLACK is designed using the newest, most advanced Sixty5 series design.
The 6502/G2 BLACK has a 130° wide angle color camera, for a panoramic view, with white LEDs for low light conditions. The module is ADA compliant, with voice prompts and backlit symbols with acoustic push confirmation tones, as well as a built-in inductive loop amplifier. The rugged construction is both IP65 and IK07 rated for weather-resistance and vandal-resistance.
Each 6502/G2 BLACK comes with the built-in camera/speaker/microphone module, 4.3" TFT LCD display and back-lighted digital-dial numeric keypad. The 6502/G2 can be Flush or Surface mounted (with the addition of the separate corresponding housing), and can also be used with the optional rainhood.
A presence sensor detects the proximity of a visitor, who will be greeted with a customizable Welcome Screen. During the call and communication processes, the display can show the visitor's image.
Features
- BUS-out connection: 2 wires without polarity for easy installation.
- Independent relays: 2 built-in relays for controlling both Door and Gate.
- Tamper Alarm: Built-in alarm for enhanced security.
- Durable construction: 5mm thick Black Anodized Aluminum faceplate for longevity.
- Simple wiring: Uses simple 2-conductor non-polarized wiring for hassle-free setup.
- Proximity reader: Built-in with Weigand 26 output (requires additional components for use).
- Vandal and water-resistant: Rated IK-07 and IP65 for reliable outdoor performance.
- Voice messages: Available in 5 different languages for accessibility.
- Digital Display: Handles 3-digits from 001 through 999 for identification.
- Inductive Loop Amplifier: Built-in for hearing aid compatibility.
- Wide Angle Camera: 130° color camera with night vision capability through white LEDs.
- Camera resolution: 480 x 272 pixels for clear images.
- Automatic LED activation: Adjusts in low light conditions for optimal visibility.
- Optional Rain Hood: Available for both Flush or Surface mounting.
- Programming: Via keypad and web server for easy setup.
Alpha 6502-G2-BLACK Detailed Specifications
| Model | Alpha 6502/G2 BLACK |
| Material | Black Anodized Aluminum |
| Camera View | 130° wide angle |
| Camera Resolution | 480 x 272 pixels |
| Display | 4.3" TFT LCD |
| Mounting Options | Flush or Surface (with housing) |
| Resistance Ratings | IK-07 (vandal), IP65 (water) |
| Power Supply | Requires 2-conductor non-polarized wiring |
| Relay Options | 2 independent relays |
| Features | Voice prompts, readable symbols, tamper alarm, proximity reader |
SKU  | 6502-G2-BLACK |
|---|---|
| Manufacturer | Alpha |
| Intercom Type | Video Intercom |
| Connection Method | Multi-Wire Digital Systems |
Weatherproof  | Outdoor |
| Material | Aluminum |
6502-G2-BLACK-Specsheet
