West Penn WP-2598G8BM-150 RG8 Plenum BNC to BNC Assemblies, 150 Feet
SKU
WP-2598G8BM-150
Model No
WP-2598G8BM-150
$1,678.89
Product Highlights
- Transmission performance 4GHZ
- UL Certified Cable CMP Rating
- 100% factory transmission tested
- BNC Compression Rating Return Loss: Up to 2.4GHz
Speak to an expert

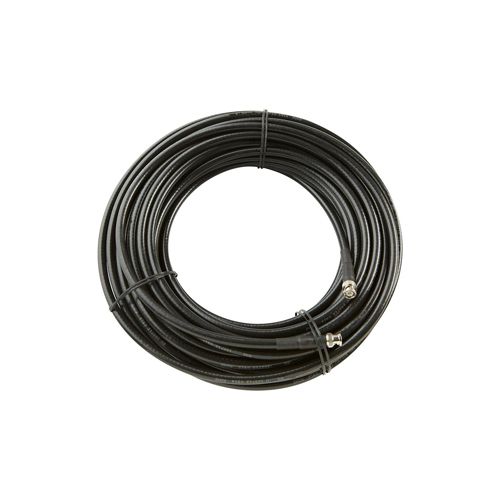

The WP-2598G8BM-150 from West Penn is a RG8 Plenum BNC to BNC Assemblies, 150 Feet. West Penn Wire 50 Ohm Coaxial assemblies are designed for RF & Wireless Microphone Applications. The Cable offers 10AWG Solid Bare Copper Center Conductor, Foamed FEP insulation and a 100% Aluminum Foil + 90% Tinned Copper Braid. The Connector used is a 50Ohm BNC Male Plug.
West Penn WP-2598G8BM-150 Key Features
- Transmission Performance: Performance up to 4GHz, ensuring high-quality signal transmission for audio and video applications.
- UL Certified Cable CMP Rating: Compliant for use in plenum spaces for enhanced safety in building environments.
- Factory Tested: 100% factory transmission tested for reliability and consistent performance.
- BNC Compression Rating: Return Loss up to 2.4GHz, providing superior signal integrity and minimal loss.
West Penn WP-2598G8BM-150 Detailed Specifications
| Feature | Details |
|---|---|
| Type | RG8 Plenum BNC to BNC Assembly |
| Length | 150 Feet |
| Center Conductor | 10AWG Solid Bare Copper |
| Insulation | Foamed FEP |
| Shielding | 100% Aluminum Foil + 90% Tinned Copper Braid |
| Connector | 50Ohm BNC Male Plug |
| Frequency Performance | Up to 4GHz |
| Cable Rating | UL Certified CMP Rating |
SKU  | WP-2598G8BM-150 |
|---|---|
| Manufacturer | West Penn |
| Length | 150' |
