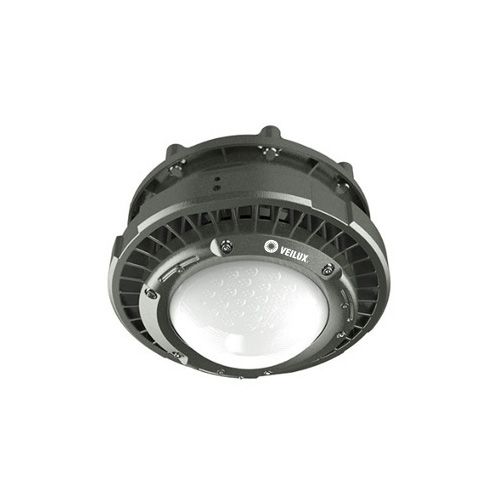

Veilux VL-EXS8232-150W Compact Explosion-Proof Floodlight 150W

Explosion-Proof LED High Bay Light with 155 CREE LEDs, IP66 rating, and ExdIICT6W certification. Ideal for hazardous gas zones and extreme industrial environments.

VL-EXS8232-150W Explosion-Proof LED High Bay Light for Hazardous Environments

The VL-EXS8232-XXX Explosion-Proof LED High Bay Light is a high-performance lighting solution built for Zone 1 and Zone 2 hazardous environments where explosive gases or vapors are present. Designed with advanced LED technology and durable construction, this fixture delivers powerful, energy-efficient illumination while maintaining strict adherence to international safety standards. Ideal for chemical plants, oil refineries, marine decks, and processing facilities, this luminaire provides a high lumen output, robust protection, and reliable operation under harsh environmental conditions.

Certified Safety for Explosive Zones

The VL-EXS8232-150W is fully certified for use in explosion-prone areas with its ExdIICT6W explosion-proof rating, compliant with GB3836.1 / GB3836.2 executive standards. Built to contain and isolate internal sparks or heat, this fixture ensures ignition cannot occur in external flammable atmospheres. With an IP66 protection level, the light is dust-tight and resistant to high-pressure water jets, making it suitable for both indoor and outdoor installations in extreme weather. Its anti-corrosion grade WF2 rating offers added protection in salty, chemical-laden, or humid air environments.

Efficient, Powerful, and Instant-On Illumination

This explosion-proof LED light delivers between 100W and 150W of power with an impressive light efficiency of 120 lumens per watt, making it a highly effective lighting solution for large industrial spaces. The fixture emits bright, clear light instantly, thanks to its ≤0.2 second start-up time, without warm-up delays or flickering.

Built to Withstand Harsh Industrial Conditions

The VL-EXS8232-150W is engineered for stability and performance in rugged conditions, with operational support in a wide temperature range from -30°C to 50°C (-22°F to 122°F). The high-power factor of >0.95 ensures optimal electrical efficiency and minimal energy loss. Its compact, durable body is manufactured to handle the high vibrations and shock loads common in industrial settings, while the corrosion-resistant build ensures longevity in offshore, mining, or refinery applications.

Features

• Configuration: Using imported LED light source, the average service life is approximately 100,000 hours. The power supply uses a wide voltage process which maintains a constant current output, has short circuit and over voltage protection functions which can prolong the service life of these lamps
• Heat dissipation: The structure design of the upper and lower ventilation is made to improve the heat dissipation performance and avoid dust accumulation in conventional LED radiators
• Distribution of light: using high precision, high permeability, optical lens, light projection distance more far and stronger illumination, suitable for all kinds of places such as the need for ultra-long projection lights
• Protection: IP66 protection level, corrosion protection level can reach WF2, the surface of the lamp body will never corrode, never rust
• Installation mode: Top ceiling, suspension ceiling, bent bar, vertical bar and other installation modes can be adopted as required
• Inlet port: Series and parallel connection of lamps and lanterns can be realized by adopting double inlet design. Separation design of power supply cavity and wiring cavity has great assembly space, which makes the installation and wiring more safe and convenient, and the heat dissipation performance is more prominent
