Veilux VL-EXS8231-90W Explosion-Proof LED High Bay Light 90W

Explosion-Proof LED High Bay Light 90W. Certified Ex d IIC T6 Gb, IP66, CREE3030 LEDs, 100,000h lifespan for Zone 1 & 2

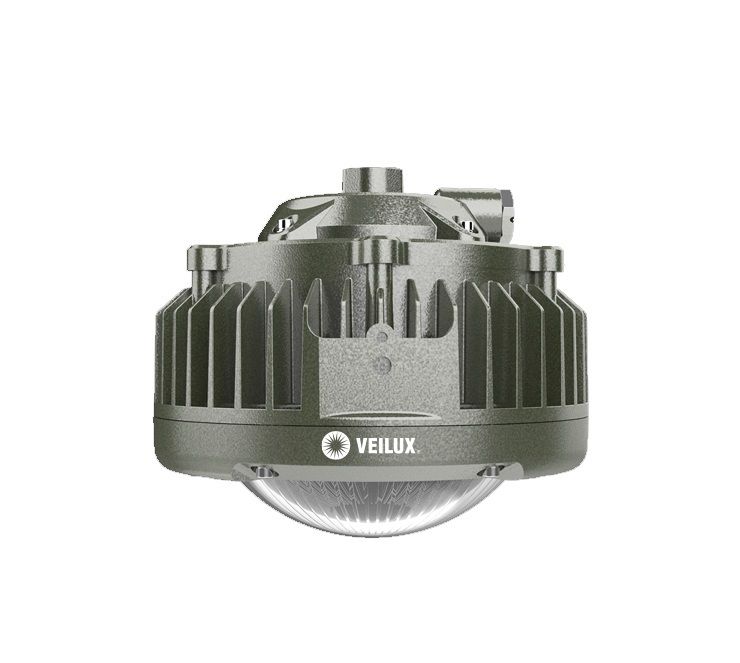

VL-EXS8231-90W Explosion-Proof LED High Bay Light

The VL-EXS8231-XX Explosion-Proof LED High Bay Light is a robust industrial lighting solution designed specifically for hazardous areas where explosive gases, vapors, or dust may be present. Built with CREE3030 LEDs, a corrosion-resistant body, and advanced thermal design, this Explosion-Proof LED High Bay Light ensures maximum safety, energy efficiency, and long service life. Engineered for Zone 1 and Zone 2 hazardous environments, the VL-EXS8231-XX provides reliable and powerful illumination for industries such as oil & gas, chemical processing, marine operations, and power generation facilities.

Certified Safety for Explosive Environments

Safety is critical in explosive environments, and this Explosion-Proof LED High Bay Light delivers complete protection. With an Ex d IIC T6 Gb explosion-proof rating and compliance with GB3836.1 and GB3836.2 standards, it is purpose-built for hazardous operations. The light features an IP66 protection level and WF2 anti-corrosion grade, making it completely dustproof, resistant to high-pressure water jets, and immune to rust and corrosion. This ensures long-term reliability, even in marine, offshore, and chemical plant environments.

Efficient and Reliable Illumination

The VL-EXS8231-90W Explosion-Proof LED High Bay Light is equipped with 90 high-output CREE3030 LEDs, delivering a luminous efficiency of 120 lm/W. With power options from 50W to 90W, it provides bright, uniform illumination with a 120° beam angle. A start-up time ≤0.2s ensures instant lighting, while its 100,000-hour LED lifespan guarantees low maintenance and fewer replacements over time. The color temperature range of 3000K–6500K and a CRI ≥70 make this Explosion-Proof LED High Bay Light suitable for detailed visual tasks in demanding environments.

Features

• Configuration: Using imported LED light source, the average service life is approximately 100,000 hours. The power supply uses a wide voltage process which maintains a constant current output, has short circuit and over voltage protection functions which can prolong the service life of these lamps
• Heat dissipation: The structure design of the upper and lower ventilation is made to improve the heat dissipation performance and avoid dust accumulation in conventional LED radiators
• Distribution of light: using high precision, high permeability, optical lens, light projection distance more far and stronger illumination, suitable for all kinds of places such as the need for ultra-long projection lights
• Protection: IP66 protection level, corrosion protection level can reach WF2, the surface of the lamp body will never corrode, never rust
• Installation mode: Top ceiling, suspension ceiling, bent bar, vertical bar and other installation modes can be adopted as required
• Inlet port: Series and parallel connection of lamps and lanterns can be realized by adopting double inlet design. Separation design of power supply cavity and wiring cavity has great assembly space, which makes the installation and wiring safer and more convenient, and the heat dissipation performance is more prominent
