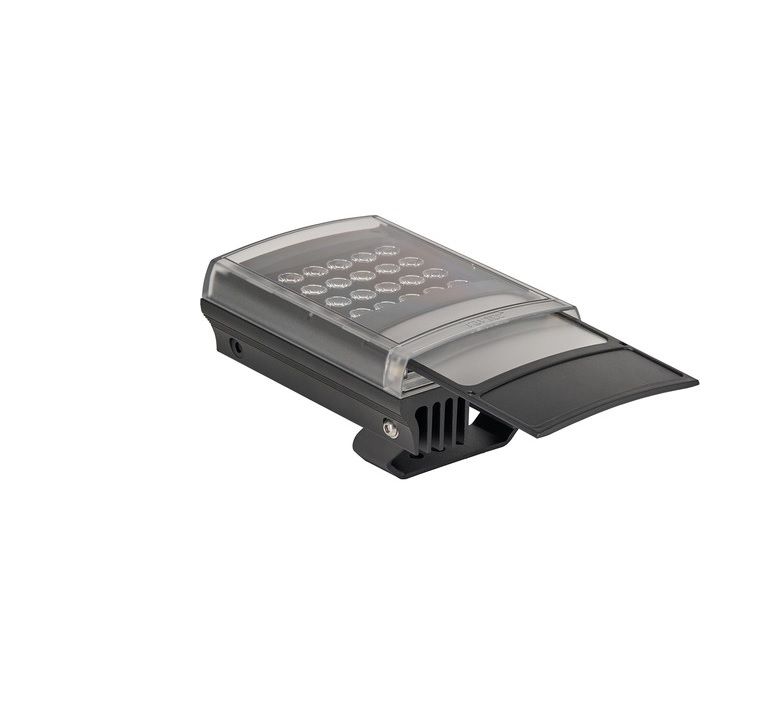

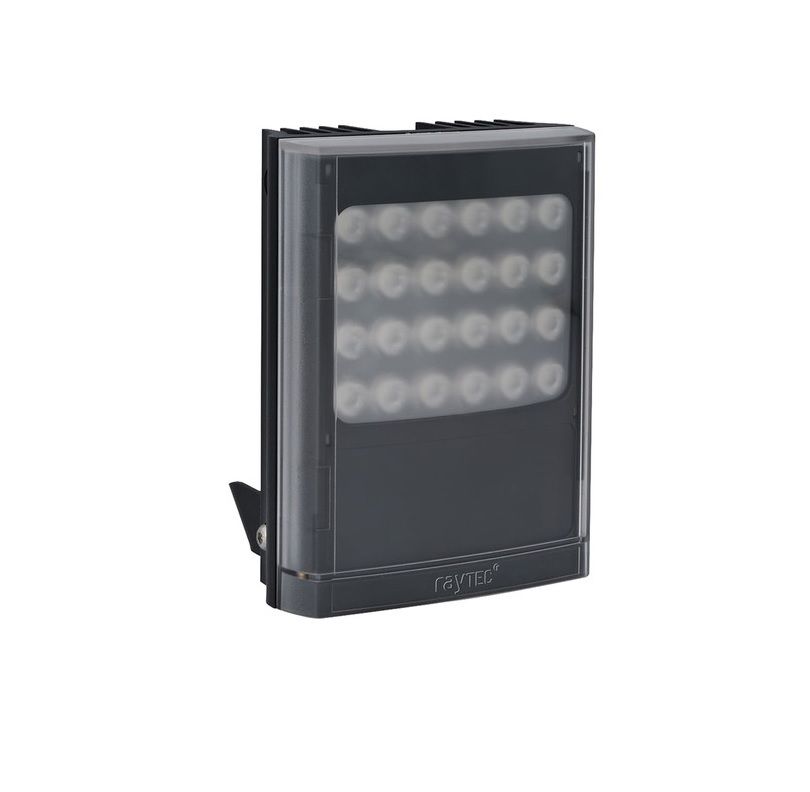

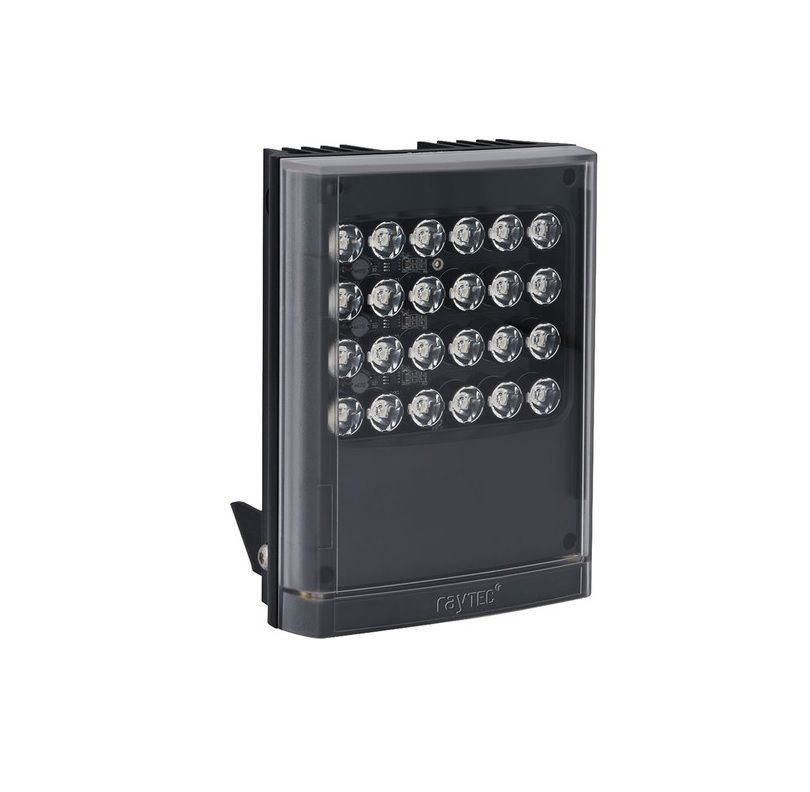

Raytec VAR2-HY8-1 Long-Range Hybrid Illuminator (850nm)

Get 850nm infrared and visible illumination from a single two-in-one solution with the VARIO2 hy8-1 Long-Range Hybrid Illuminator from Raytec. Equipped with 12 semi-covert IR LEDs and 12 white LEDs, the VARIO2 hy8-1 provides up to 951' of IR and 472' of visible light to help cameras produce clear images in a variety of scenarios. The unit's interchangeable lens system with hot-spot reduction technology (HRT) is designed to deliver even illumination without causing overexposed white spots. Three lenses are included, a 10 x 10° circular, a 35 x 10°, and a 60 x 25° lens. Suitable for outdoor use, the illuminator is housed in an IP66-rated weather-resistant enclosure.

Features

• 850nm IR & Visible illumination: Provides enhanced visibility in low-light conditions for optimal camera performance.
• Up to 951'/472' IR/White beam range: Ensures extensive coverage, allowing for detailed image capture over long distances.
• Three interchangeable lenses: Offers versatility in installation, accommodating various lighting needs and scenarios.
• 10 x 10, 35 x 10 & 60 x 25° Angles: Allows you to adjust the beam angles to suit different environments and applications.
• 12 x Semi-covert IR & 12 x white LEDs: Provides a balanced light output for both IR and visible lighting without compromising image quality.
• Hot-spot reduction technology: Discourages overexposure in specific areas, leading to clearer, more even illumination.
• LED Status indicator: Keeps users informed on power and operational status, ensuring reliable performance.
• Runs on 24 VDC: Compatible with common power supplies for easy integration into existing systems.
• IP66-Rated for outdoor use: Guaranteed durability and protection against dust and heavy rain, ideal for external installations.
• U-Bracket included for installation: Simplifies setup and allows for flexible mounting options.

Raytec VAR2-HY8-1 Detailed Specifications
