Pelco UPT3SLWAN00E ULISSE MAXI 120Vac Wiper for Network Cameras

Pelco UPT3SLWAN00E ULISSE MAXI 120Vac Wiper for Network Cameras

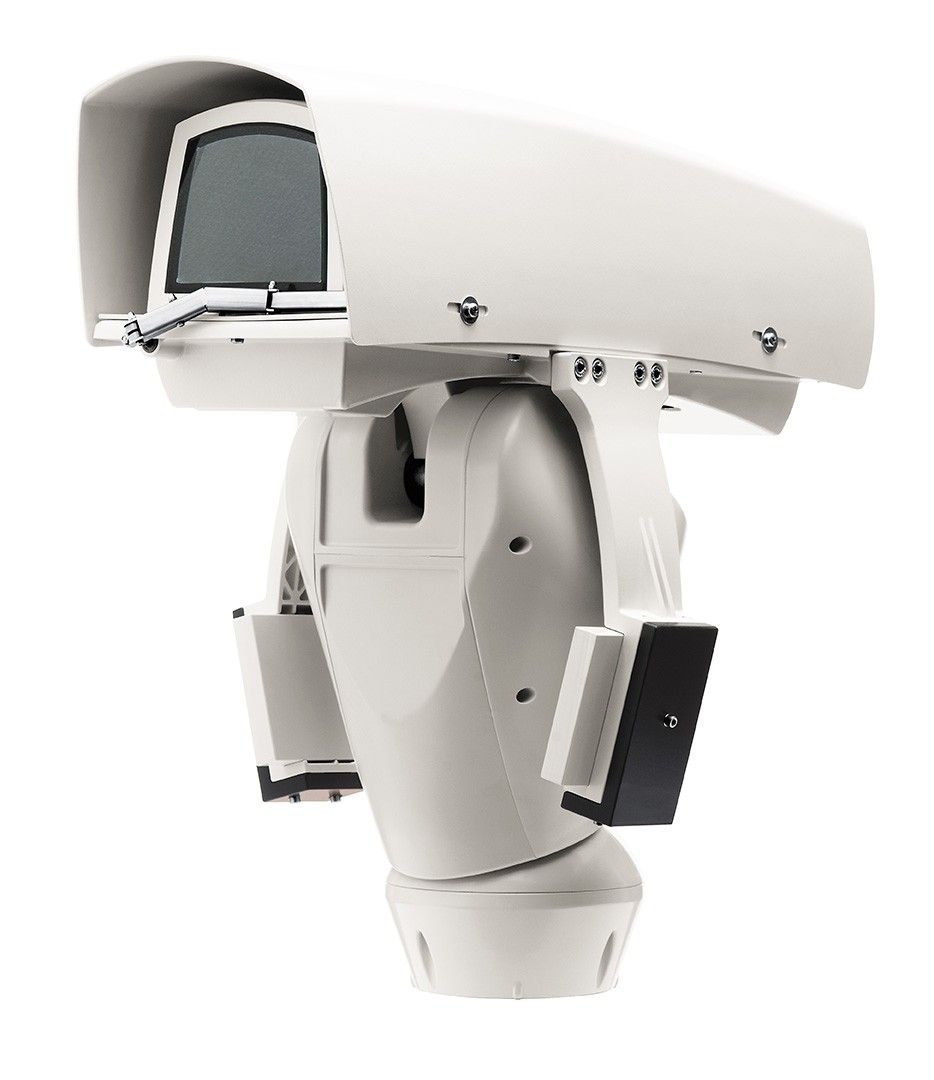

ULISSE MAXI NETCAM is a powerful Full-IP PTZ for outdoor IP video surveillance, which can manage modern IP SD, HD and Megapixel cameras, with integration in a network system.

This model can house and manage the largest motorised lenses on the market, taking a total weight of up to almost 8 kilos.

This way a single unit can provide a 360° coverage of the area to be monitored. A special feature of ULISSE MAXI NETCAM is the ability to easily control, via the network, all the camera's pan & tilt functions, including wiper, preset and set-up, using the most common VMS on the market.

It is possible to use any ONVIF compatible Profile S camera, or proprietary protocol on RS-485, whilst the entire management of the system only requires an IP address.

The Pelco PTZ ASSISTANT plug-in software supports any VMS with the control of all special functions such as wiper, washer pump and IR. The unit is equipped with a wiper for removing rain and dust from the front glass; there is a wide selection of jerry cans with washer pump, different capacities and heads.

To ensure detailed images even during the night hours, versions are available with LED illuminators, with infrared light or white light. The sturdy mechanical structure and the powerful motors of this PTZ are designed to guarantee maximum resistance to high operating stress, vibrations and temperatures between -10°C to +60°C.

The unit is equipped with optical sensors which ensure the accurate control of the position in any condition of use. Models are available for vision with a thermal camera.

Features

• Weatherproof housing: Designed for large-size lenses to withstand outdoor conditions.
• Camera and lens weight capacity: Supports up to 7.6kg (17lb), accommodating high-performance camera setups.
• Network compatibility: Works with ONVIF Profile S and RS485 serial port for versatile integration.
• Web access: Direct access to camera web pages via VT Tunnelling enhances remote management.
• Control features: Supports Autopen, Preset, and Patrol settings for flexible operation.
• Variable speed: Offers pan and tilt speeds from 0.02°/s to 20°/s for precise camera movements.
• Rotation range: Continuous horizontal rotation, vertical tilt from +45° to -20° for comprehensive coverage.
• Position feedback: Optical sensors provide absolute positioning feedback for accuracy.
• Preset options: Up to 250 presets for automated surveillance routines.
• Integrated wiper: Ensures clear viewing by removing rain and dust from the glass.
• Pelco PTZ ASSISTANT: Allows total control of auxiliary functions through intuitive software.
• Operating temperature range: Reliable performance in temperatures from -10°C (14°F) to +60°C (140°F).
• Power supply: Compatible with 230Vac, 24Vac, or 120Vac for flexible power options.

Detailed Specifications of Pelco UPT3SLWAN00E
