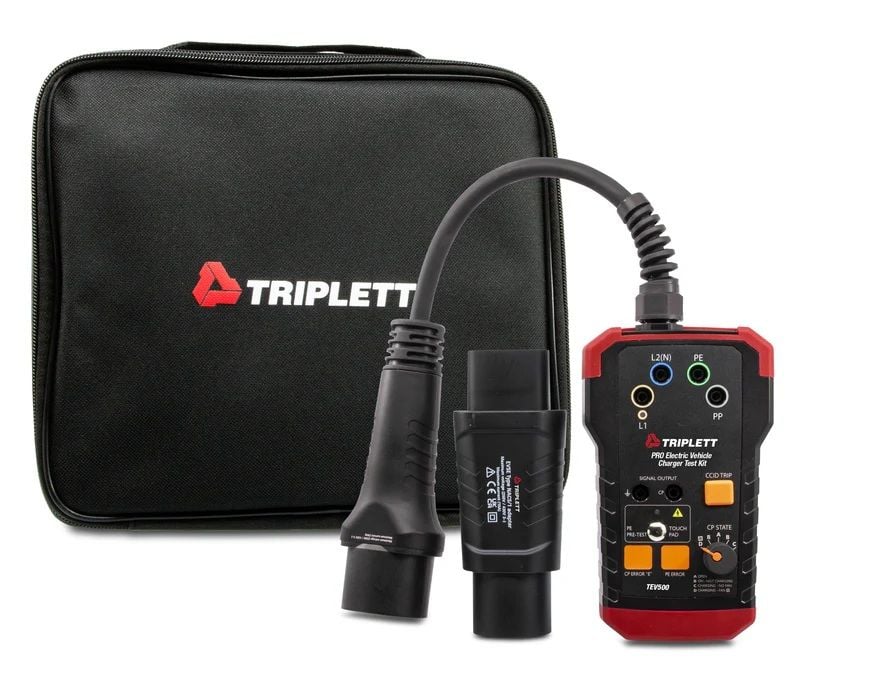

Triplett TEV500 Pro Electric Vehicle Charger Test Kit

The Triplett TEV500 Pro Electric Vehicle Charger Test Kit is an essential tool for professionals diagnosing electric vehicle charging stations. With its advanced testing capabilities, including pre-tests for safety and vehicle state simulation, this test kit allows for both basic and complex diagnostic requirements, ensuring thorough and accurate assessments.

Triplett TEV500 Pro Charger Test Kit Features

• Test Capability: Test charging stations for both basic & advanced diagnostic requirements, allowing for versatile use in various scenarios.
• PE Pre-Test: Allows testing the PE conductor for possible presence of dangerous voltage against earth, ensuring safety during diagnostics.
• Control Pilot (CP) State Simulation: With the CP State rotary switch selector, various vehicle states can be simulated, enabling comprehensive testing and analysis.
• CP Signal State Output: For use with an oscilloscope to check the waveform and amplitude of the CP signals, providing detailed insights into charging performance.
• CP Error “E” Simulation: Simulate the behavior of the station when there is an established short circuit between CP and PE, helping to identify potential faults in the system.

Triplett TEV500 Pro Detailed Specifications
