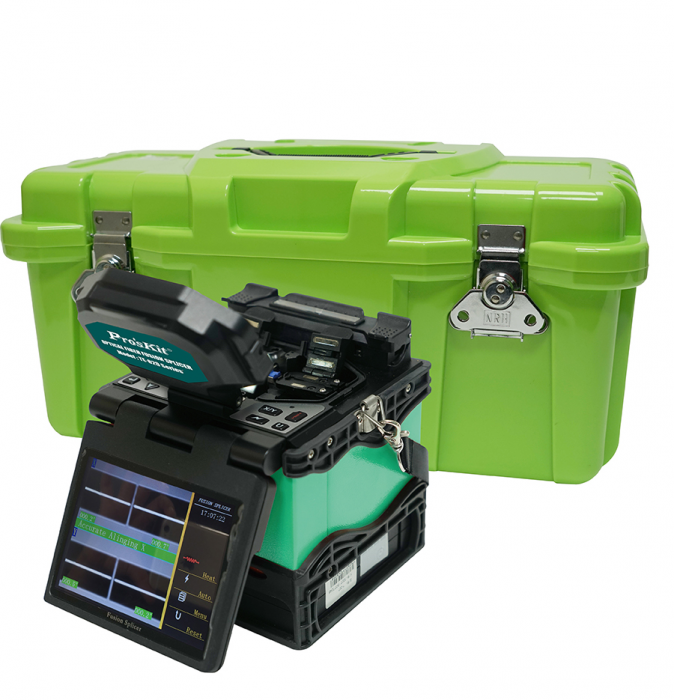

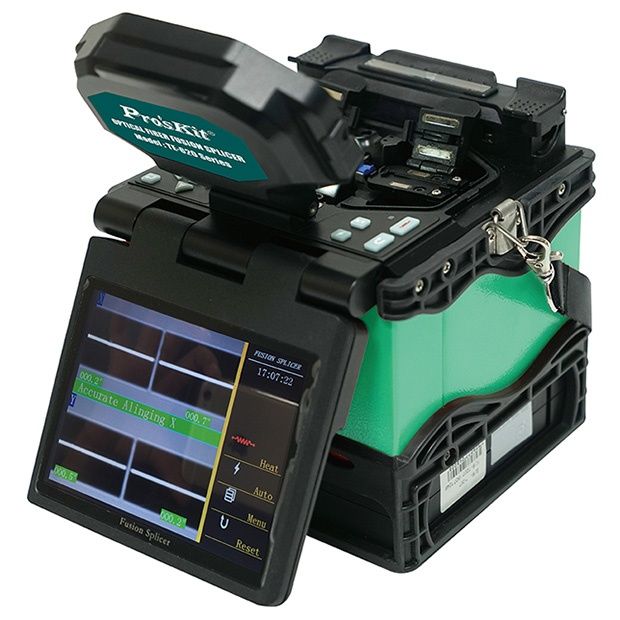

Eclipse Tools TE-8202A-W Fiber Optic Fusion Splicer

The TE-8202A-W from Eclipse Tools is a fiber optic fusion splicer. The splicing machine is a new fully-digital design with 5" LCD colorful display, which provides the latest core to core alignment technology. This advanced splicer offers high-quality fusion splicing for efficient fiber connection, along with heat shrink protection and high-resolution output for accurate monitoring.

Features

Eclipse Tools TE-8202A-W Camera Features

• High quality fusion splicing: Auto/manual/full auto focus functions, allowing for flexibility in operation.
• Advanced core to core alignment: Ensures optimal connections for enhanced performance.
• Average splice time: 10 seconds, significantly reducing installation times.

Eclipse Tools TE-8202A-W Heat Shrink Protection Features

• Suitable for 20/40/60mm (0.8/1.6/2.4") tubes: Versatile compatibility with different tube sizes for various applications.
• Average tube-heat time: 30 seconds, promoting quick operation.

Eclipse Tools TE-8202A-W Hi-resolution Output Features

• 5" colorful LCD display: Provides clear visuals for better analysis and monitoring during splicing.
• Separately X or Y axis views with 300 times magnification: Facilitates precise positioning and assessment of fiber alignment.
• Cutting-edge technology for image processing: Ensures high-quality images for clear visibility of splicing results.
• Store 6000 groups of latest splicing results: Enables easy reference and data management for multiple projects.
• USB port B-type: Allows for convenient updates and result transfers.
• Removable and Rechargeable Li-ion battery with indicator: Provides 180 times splicing and heating, ensuring sustained performance in the field.

Eclipse Tools TE-8202A-W Detailed Specifications
